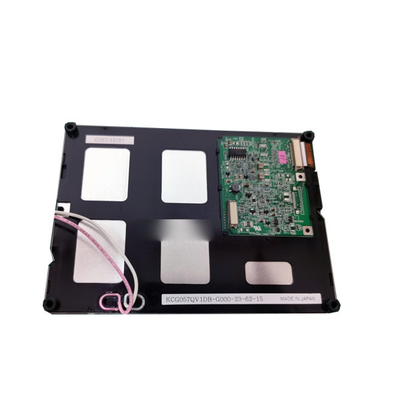

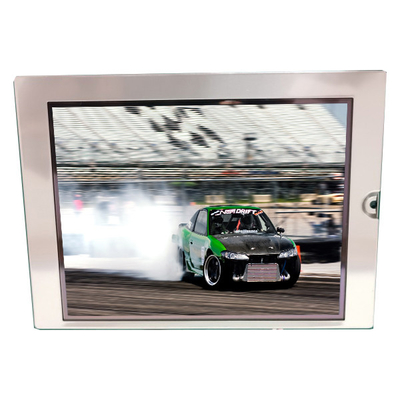

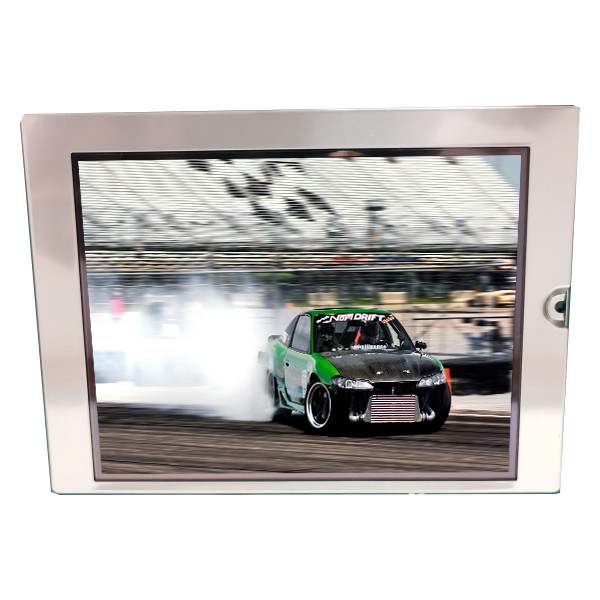

Original 5.7 inch KCG057QV1DB-G00 LCD SCREEN DISPLAY PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG057QV1DB-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG057QV1DB-G00 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 119.4(W)×90.6(H) Mm | Outline (mm): | 144(W)×104.8(H)×13.2(D) Mm |
| Weight: | 175g (Typ.) | Designed For: | Industrial |
Product Description
Original 5.7 inch KCG057QV1DB-G00 LCD SCREEN DISPLAY PANEL
KCG057QV1DB-G00 Product details :
| kyocera LCD SCREEN KCG057QV1DB-G00 | |
| Panel Brand | kyocera |
| Panel Model | KCG057QV1DB-G00 |
| Panel Size | 5.7 inches |
| Panel Type | LCM, CSTN-LCD |
| Resolution | 320(RGB)×240 QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2 × 86.4 mm (H×V) |
| Bezel Opening | 119.4 × 90.6 mm (H×V) |
| Outline Size | 144 × 104.8 × 13.2 mm (H×V×D) |
| Surface | Glare (Haze 0%) |
| Brightness | 160 cd/m² (Typ.) |
| Contrast Ratio | 55:1 (Typ.) (Transmission) |
| Viewing Angle | 50/50/20/35 (Typ.) (CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 190/170 (Typ.)(Tr/Td) ms |
| Display Colors | Color 39% NTSC |
| Lamp Type | CCFL [1 pcs] , 54K hours, optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 175g (Typ.) |
| Application | Industrial |
| Signal Interface | Parallel Data (8-bit) , terminal, 20 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Operating temperature: 0 ~ 60 °C ; Storage temperature: -20 ~ 60 °C |
| Original 5.7 inch KCG057QV1DB-G00 LCD SCREEN DISPLAY PANEL | |
KCG057QV1DB-G00 About Product:
Images show actual product, please verify all connectors and specifications carefully.
We will send the compatible one instead if original one out of stock.
All items will be tested shipped .
if you have any question, please give us a message.
Highly recommendable professional installation.We will not be liable for any damage to your Computer which caused during your installation.
Before installation, please disconnect the power and unplug the battery!!!
KCG057QV1DB-G00 Shipping and Package :
KCG057QV1DB-G00 SHIPPING METHOD:
We usually provide shipping method China Post Air Mail and E packet to USA. Shipping viaEMS, DHL,UPS or FEDEX are also available if you wish to pay extra charge or your order reacha large amount.
KCG057QV1DB-G00 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Regardless reason, customer may return product during a period as specified below in eBay Return Policy Section, for a refund of purchase price less 20% restocking fee. The customer is responsible for all return shipping charges in all cases.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
Customer please request a Return Merchandise Authorization (RMA) prior to shipping product back, and is responsible for any shipping charges to ship the product back. Any return/exchange without RMA may be rejected. Please follow instructions in RMA to pack the product or it may be rejected.
KCG057QV1DB-G00 FAQ:
Q: If I place order now,when will you ship the goods of KCG057QV1DB-G00?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of KCG057QV1DB-G00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of KCG057QV1DB-G00?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90days warranty .
