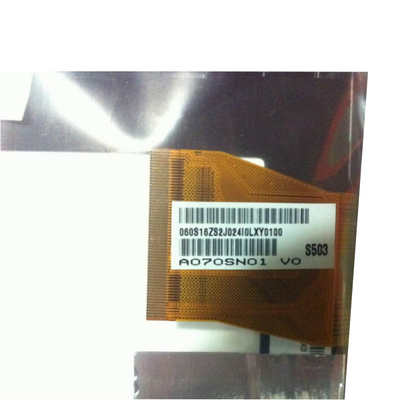

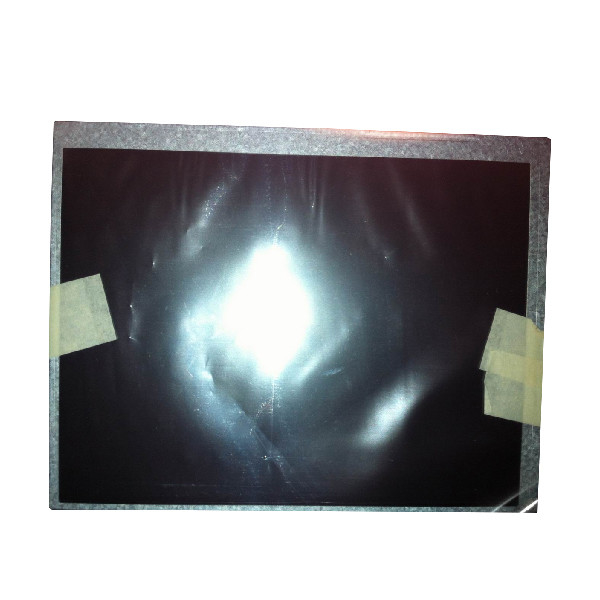

Car Navigation 7 inch AUO A070SN01 V0 LCD Display Screen Panel For Car Auto Replacement
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070SN01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070SN01 V0 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 143PPI | Active Area: | 141.6(W)×106.2(H) Mm |
| Outline Dim.: | 154(W)×119.2(H) ×5.4(D) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Responding: | 3/13 (Typ.)(Tr/Td) Ms | Designed For: | Portable DVD Player Digital Photo Frame |
Product Description
Car Navigation 7 inch AUO A070SN01 V0 LCD Display Screen Panel For Car Auto Replacement
A070SN01 V0 Product details :
| AUO LCD SCREENA070SN01 V0 | |
| Panel Brand | AUO |
| Model Name | A070SN01 V0 |
| Screen size | 7.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×600, SVGA, 143PPI |
| Pixel | RGB triangle |
| Display size | 141.6(W)×106.2(H) mm |
| Outline(mm) | 154(W)×119.2(H) ×5.4(D) mm |
| Visual size | 143.6(W)×108.2(H) mm |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 70/70/60/60 (Typ.)(CR≥10 |
| Responding | 3/13 (Typ.)(Tr/Td) ms |
| Number of | 262K/16.2M, 50% NTSC |
| Backlight type | 3S6P WLED, 10K hours, no driver |
| Screen weight | 123g (Typ.) |
| Used for | Portable DVD Player Digital Photo Frame |
| Touch function | No touch |
| Signal system | TTL (1 ch, 6/8-bit), 60 pins, FPC |
| Supply voltage | 3.3/11.6/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Working: -10 ~ 50 °C; Storage: -20 ~ 60 °C |
| Car Navigation 7 inch AUO A070SN01 V0 LCD Display Screen Panel For Car Auto Replacement | |
A070SN01 V0 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
A070SN01 V0 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
A070SN01 V0 FAQ:
Q: What happen if the lcd screen A070SN01 V0 I received can't work ?
A: Our A070SN01 V0 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to order A070SN01 V0 ?
A: We accept the T/T , Western union , paypal .
Q: what's the warranty of TFT-LCD A070SN01 V0 ?
A: 90days.
Q: Can you declared low price of my 7.0 inch lcd panel A070SN01 V0 when shipping?
A: Yes , please inform us the value you want .
