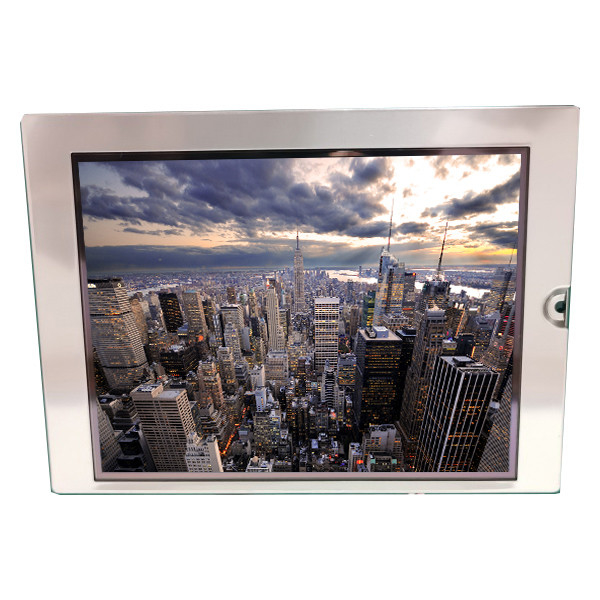

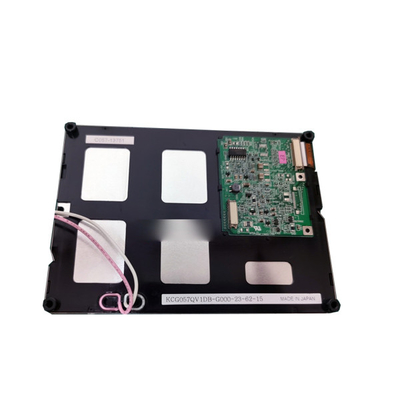

5.7 inch screen lcd display KCG057QV1DB-G000 320*240 lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG057QV1DB-G000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG057QV1DB-G000 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.18(W)×86.38(H) Mm |
| Bezel Opening: | 119.4(W)×90.6(H) Mm | Outline (mm): | 144×104.8×13.2 (H×V×D) |
| Mass: | 175g | Used For: | Industrial |
Product Description
5.7 inch screen lcd display KCG057QV1DB-G000 320*240 lcd panel
KCG057QV1DB-G000 Product details :
| kyocera LCD SCREEN KCG057QV1DB-G000 | |
| Panel Brand | kyocera |
| Panel Model | KCG057QV1DB-G000 |
| Panel Size | 5.7 inches |
| Panel Type | LCM, CSTN-LCD |
| Resolution | 320(RGB)×240 QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.18(W)×86.38(H) mm |
| Bezel Opening | 119.4(W)×90.6(H) mm |
| Outline Size | 144(W)×104.8(H) ×13.2(D) mm |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 55:1 (Typ.) (Transmission) |
| Viewing Angle | 50/50/20/35 (Typ.) (CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Display Colors | Color |
| Lamp Type | 1 pcs CCFL |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 175g (Typ.) |
| Application | Industrial |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| 5.7 inch screen lcd display KCG057QV1DB-G000 320*240 lcd panel | |
KCG057QV1DB-G000 Top quality:
We promise all products are original. Neither copy nor fake is accepted.
KCG057QV1DB-G000 PAYMENT:
-We accept paypal ,Escrow, Credit Card,T/T,Western Union,WebMoney Qiwi wallet and Brazil Boleto.
- We send goods within 1-5business days after receiving the payment.
- Orders will be canceled if payment is not received within 10 days of purchase.
KCG057QV1DB-G000 Shipping and Package :
KCG057QV1DB-G000 Shipping:
· Please note: business/working days(NOT including the weekend or the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
· For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
KCG057QV1DB-G000 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
KCG057QV1DB-G000 FAQ:
Q: Can you give me a discount if I need a large quantity of KCG057QV1DB-G000 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of KCG057QV1DB-G000 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of KCG057QV1DB-G000 ?
A: We accept T/T , Paypal , western union .
Q: How long will I receive my goods KCG057QV1DB-G000 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
