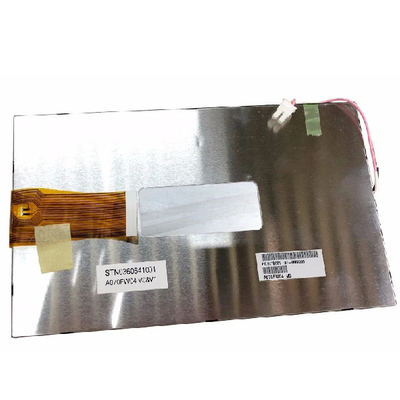

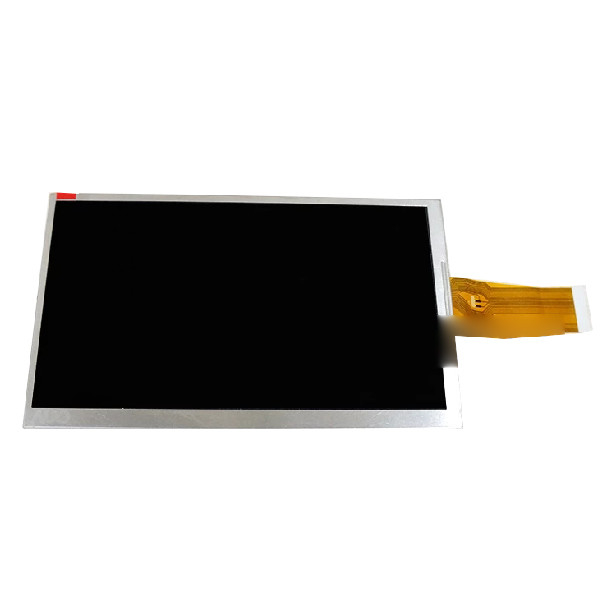

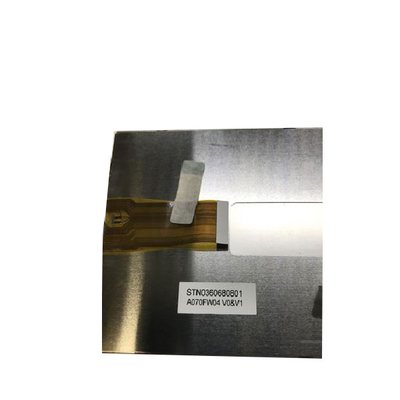

A070FW04 V0 7.0 inch 480*234 Industry LCD Module panel display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070FW04 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070FW04 V0 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×234, 76PPI | Active Area: | 154.08(W)×86.58(H) Mm |
| Outline Dim.: | 165.5 × 100 × 6.04 Mm (H×V×D) | Luminance: | 400 Cd/m² (Typ.) |
| Responding: | 12/18 (Typ.)(Tr/Td) Ms | Designed For: | Industrial |
Product Description
A070FW04 V0 7.0 inch 480*234 Industry LCD Module panel display
A070FW04 V0 Product details :
| AUO LCD SCREEN A070FW04 V0 | |
| Panel Brand | AUO |
| Model Name |
A070FW04 V0 |
| Screen size | 7.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 480(RGB)×234, 76PPI |
| Pixel | RGB triangle |
| Display size | 154.08(W)×86.58(H) mm |
| Outline Dim. | 165.5 × 100 × 6.04 mm (H×V×D) |
| Visual size | 156.2 × 88.8 mm (H×V) |
| Surface | Antiglare |
| Brightness | 400 (Typ.) |
| Contrast | 300: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| Responding | 12/18 (Typ.)(Tr/Td) ms |
| Number of | Full color, 48% NTSC |
| Backlight type | 1 pcs CCFL, 10K hours, no driver |
| Designed For | Industrial |
| Screen weight | 160g (Typ.) |
| Touch function | No touch |
| Signal system | Serial RGB (8-bit) + SPI, CCIR656, FPC, 40 pi |
| Supply voltage | 3.3/5.25/12.5/-12.5V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Storage temperature: -25 ~ 80 °C Working temperature: 0 ~ 60 °C |
| A070FW04 V0 7.0 inch 480*234 Industry LCD Module panel display | |
A070FW04 V0 Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
A070FW04 V0 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.
- We offer a 30days Money back or replacement (buyer's choice).
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
A070FW04 V0 About Shipping:
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
A070FW04 V0 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
A070FW04 V0 Feedback:
- If you are satisfied with my project, please give me a positive feedback, as this will encourage me to serve more people around the world around the world.
- If you are not satisfied with my product, please contact me.
-Negative feedback won’t make a pleasant transaction,let’s figure out a solution together to make a good seller and a happy buyer.
A070FW04 V0 FAQ:
Q: Can I pay my goods A070FW04 V0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods AUO A070FW04 V0 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of A070FW04 V0 ?
A: 90 days warranty .
Q: Can You declare my order of lcd panel AUO A070FW04 V0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
A070FW04 V0 Shipping and Package :
