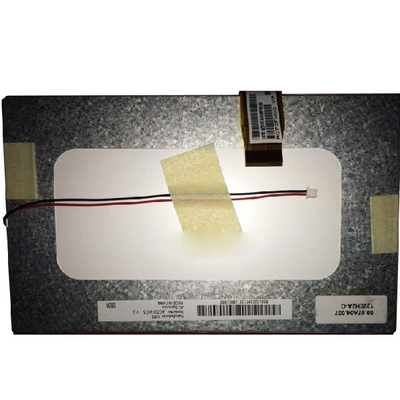

A070FW03 VD with driver board lcd display 7 inch 480*234 26 pins lcd monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070FW03 VD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070FW03 VD | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×234, 76PPI | Active Area: | 154.08 × 86.58 Mm (H×V) |
| Outline Dim.: | 164.9(w)×100(h) ×6(t) | Luminance: | 400 (Typ.) |
| Responding: | 12/18 (Typ.)(Tr/Td) Ms | Designed For: | Digital Photo Frame Portable DVD Player Video Door Phone |
| High Light: | digital signage lcd display,advertising monitors lcd,lcd menu board |
||
Product Description
A070FW03 VD with driver board lcd display 7 inch 480*234 26 pins lcd monitor
A070FW03 VD Product details :
| AUO LCD SCREENA070FW03 VD | |
| Panel Brand | AUO |
| Model Name | A070FW03 VD |
| Screen size | 7.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 480(RGB)×234, 76PPI |
| Pixel | RGB triangle |
| Display size | 154.08(W)×86.58(H) mm |
| Outline Size | 164.9(w)×100(h) ×6(t) |
| Visual size | 156.08 × 88.58 mm (H×V) |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 (Typ.) |
| Contrast | 400:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 65/65/40/65 (Typ.)(CR≥10 |
| Responding | 12/18 (Typ.)(Tr/Td) ms |
| Number of | Full color, 48% NTSC |
| Backlight type | 3S8P WLED, 10K hours, no driver |
| Mass | TBD |
| Apply to | Digital Photo Frame Portable DVD Player Video Door Phone |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | TFT Specific Analog RGB, 26 pins, FPC |
| Supply voltage | 3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Storage temperature: -20 ~ 70 °C Working temperature: -10 ~ 60 °C |
| A070FW03 VD with driver board lcd display 7 inch 480*234 26 pins lcd monitor | |
A070FW03 VD Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
A070FW03 VD Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.
- We offer a 30days Money back or replacement (buyer's choice).
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
A070FW03 VD Feedback:
- If you are satisfied with my project, please give me a positive feedback, as this will encourage me to serve more people around the world around the world.
- If you are not satisfied with my product, please contact me.
-Negative feedback won’t make a pleasant transaction,let’s figure out a solution together to make a good seller and a happy buyer.
A070FW03 VD About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
A070FW03 VD FAQ:
Q: If I order A070FW03 VD now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for A070FW03 VD ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of A070FW03 VD ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How can I trace my order of A070FW03 VD ?
A: we will give you tracking number then you can trace your order from website.
A070FW03 VD Shipping and Package :
