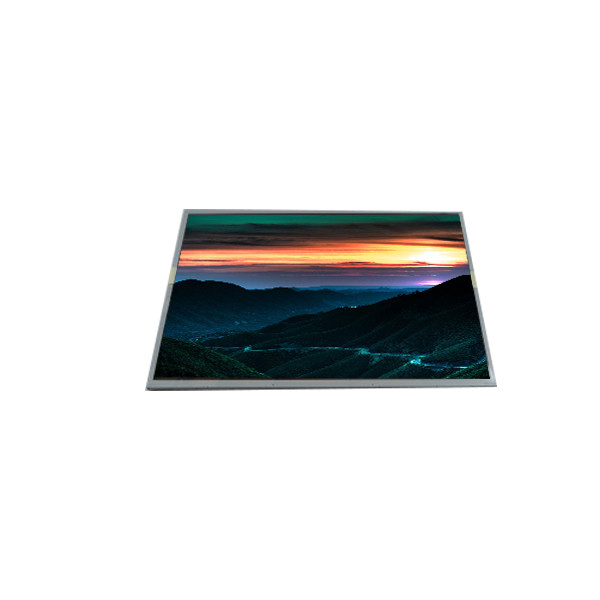

LM230WF8-TLA3 23.0 inch LCD Screen 1920*1080 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF8-TLA3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM230WF8-TLA3 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Active Area: | 509.184(W)×286.416(H) Mm |
| Bezel Opening: | 513.184(W)×290.416(H) Mm | Outline Dim.: | 533.2(H)×312(V)×11.2(D) Mm |
| Support Color: | 16.7M 72%NTSC | Designed For: | Desktop Monitor |
| Interface Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector | Frame Rate: | 60Hz |
| Highlight: | KCG047QVLAH G240 Kyocera LCD Screen,QVGA 84PPI Kyocera LCD Screen,Kyocera LCD Touch Panel |
||
Product Description
LM230WF8-TLA3 23.0 inch LCD Screen 1920*1080 LCD Display Panel
LM230WF8-TLA3 Product details :
| Brand | LG Display |
| Model P/N | LM230WF8-TLA3 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.184(W)×290.416(H) mm |
| Outline Dim. | 533.2(H)×312(V)×11.2(D) mm |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [4 strings], 30K hours, W/O Driver |
| Weight | 2.04/2.15Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
LM230WF8-TLA3 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
LM230WF8-TLA3 Shipping and Package :
LM230WF8-TLA3 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 3 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 10-25 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift,the shipping address as according to your paypal address.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
LM230WF8-TLA3 Refund&Return Policy:
We will refund you if the screen was damaged during transportation.
We will pack it very well, don't worry about packing.
You can return the items if item was not as description.
LM230WF8-TLA3 FAQ:
Q: Do you accept sample orders of LM230WF8-TLA3 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LM230WF8-TLA3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of HSD150MX17-A01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
