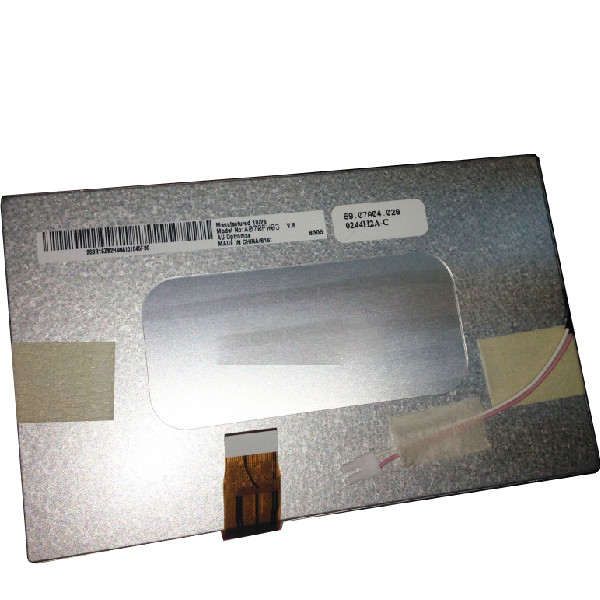

480*234 A070FW03 V9 lcd display 7 inch TFT LCD monitor
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | A070FW03 V9 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model P/N: | A070FW03 V9 | Diagonal Size: | 7.0" |
---|---|---|---|
Resolution: | 400(RGB)×234 71PPI | Active Area: | 154.08 × 86.58 Mm (H×V) |
Outline Dim.: | 154.08 × 86.58 Mm (H×V) | Luminance: | 280 Cd/m² (Typ.) |
Responding: | 12/18 (Typ.)(Tr/Td) Ms | Designed For: | Digital Photo Frame Portable DVD Player Video Door Phone |
High Light: | digital signage lcd display,advertising monitors lcd,lcd menu board |
Product Description
480*234 A070FW03 V9 lcd display 7 inch TFT LCD monitor
A070FW03 V9 Product details :
AUO LCD Screen A070FW03 V9 | |
Panel Brand | AUO |
Panel Model | A070FW03 V9 |
Screen size | 7.0inches |
Panel Type | LCM, a-Si TFT-LCD |
Resolution | 400(RGB)×234 71PPI |
Pixel configuration | RGB vertical bars |
Display size | 154.08 × 86.58 mm (H×V) |
Outline Size | 164.9(W)×100(H) ×6(D) mm |
Bezel Opening | 156.08(W)×88.58(H) mm |
Surface | Antiglare (Haze 5.5%) |
Brightness (cd/m²) | 280 cd/m² (Typ.) |
Contrast Ratio | 400:1 (Typ.) (Transmission) |
Viewing Angle | 65/65/40/65 (Typ.) (L/R/U/D) |
Responding speed | 12/18 (Typ.)(Tr/Td) ms |
Optical mode | TN, Normally White, Transmissive |
Backlight type | 3S7P WLED , 20K hours , Without Driver |
Best View on | 6 o'clock |
Display Colors | Full color |
Screen weight | 154g (Typ.) |
Touch Screen | Without |
Application | Digital Photo Frame Portable DVD Player Video Door Phone |
Signal system | 26 pins TFT Specific Analog RGB , FPC |
Supply voltage | (3.3/5.0)/5/15/-10v (Typ.) |
Maximum rating | Storage temperature: -40 ~ 95 °C Operating temperature: -30 ~ 70 °C |
480*234 A070FW03 V9 lcd display 7 inch TFT LCD monitor |
A070FW03 V9 Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
A070FW03 V9 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.
- We offer a 30days Money back or replacement (buyer's choice).
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
A070FW03 V9 Feedback:
- If you are satisfied with my project, please give me a positive feedback, as this will encourage me to serve more people around the world around the world.
- If you are not satisfied with my product, please contact me.
-Negative feedback won’t make a pleasant transaction,let’s figure out a solution together to make a good seller and a happy buyer.
A070FW03 V9 FAQ:
Q: What happen if the lcd panel A070FW03 V9 received can't work ?
A: Our lcd display A070FW03 V9 tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to order AUO lcd panel A070FW03 V9 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
A070FW03 V9 Shipping and Package :
