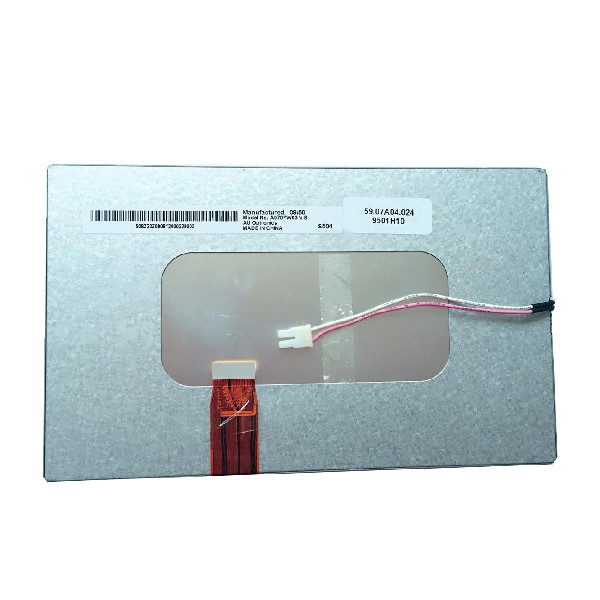

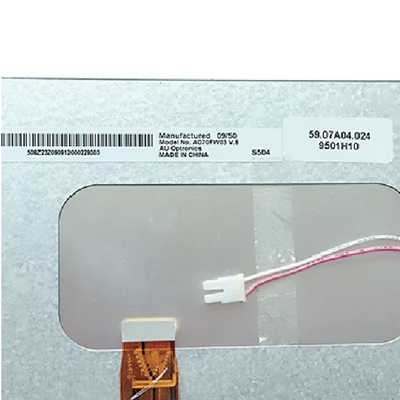

A070FW03 V8 480x234 AUO 26 pin 7 inch TFT LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070FW03 V8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070FW03 V8 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×234, 76PPI | Active Area: | 154.08(W)×86.58(H) Mm |
| Outline Dim.: | 164.9(H)×100(V) ×6(D) Mm | Luminance: | 300 Cd/m² (Typ.) |
| Responding: | 12/18 (Typ.)(Tr/Td) Ms | Designed For: | Digital Photo Frame Portable DVD Player Video Door Phone |
| High Light: | digital signage lcd display,advertising monitors lcd,lcd menu board |
||
Product Description
A070FW03 V8 480x234 AUO 26 pin 7 inch TFT LCD Display
A070FW03 V8 Product details :
| AUO LCD SCREEN A070FW03 V8 | |
| Panel Brand | AUO |
| Model Name | A070FW03 V8 |
| Screen size | 7.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 480(RGB)×234, 76PPI |
| Pixel | RGB triangle |
| Display size | 154.08(W)×86.58(H) mm |
| Outline Dim. | 164.9(H)×100(V) ×6(D) mm |
| Bezel Opening | 156.4(W)×89.0(H) mm |
| Surface | Antiglare (Haze 25%) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 400:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 65/65/40/65 (Typ.)(CR≥10 |
| Responding | 12/18 (Typ.)(Tr/Td) ms |
| Backlight type | 1 pcs CCFL, 10K hours, without driver |
| Screen weight | 147±10g |
| Apply to | Digital Photo Frame Portable DVD Player Video Door Phone |
| Touch function | No touch |
| Signal system | TFT Specific Analog RGB, 26 pins, FPC |
| Supply voltage | (3.3/5.0)/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Working: -10 ~ 60 °C; Storage: -20 ~ 70 °C |
| A070FW03 V8 480x234 AUO 26 pin 7 inch TFT LCD Display | |
A070FW03 V8 Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
A070FW03 V8 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
A070FW03 V8 Shipping and Delivery Time:
1.We ship worldwide by DHL,UPS,FedEx,EMS,TNTE-Packet,HK Post,SG Post,China Post etc.
2.We guarantee to ship out within 3 working days after payment confirmation(except Holiday).
3.We only ship to confirmed order address.Your order address MUST MATCH your shipping address.
4.If you haven't received your shipment within 30 days after payment,please contact us.
We will track the shipment and get back to you as soon as possible.
A070FW03 V8 Refund&Return Policy:
We will refund you if the screen was damaged during transportation.
We will pack it very well, don't worry about packing.
You can return the items if item was not as description.
A070FW03 V8 Dispute Policy:
In order to save your time, please don't open a dispute before contacting us.
Please contact us if you have problems, we will help you solve the problems.
A070FW03 V8 FAQ:
Q: Can I pay my goods A070FW03 V8 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods AUO A070FW03 V8 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Can You declare my order of touch lcd panel A070FW03 V8 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of AUO Display A070FW03 V8 ?
A: 90 days warranty .
