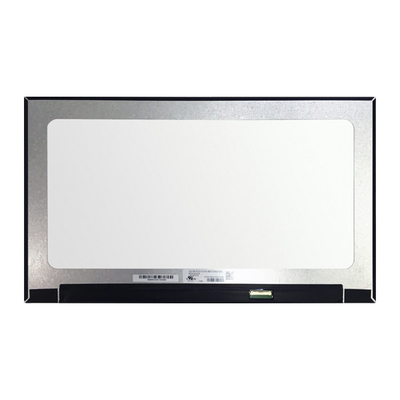

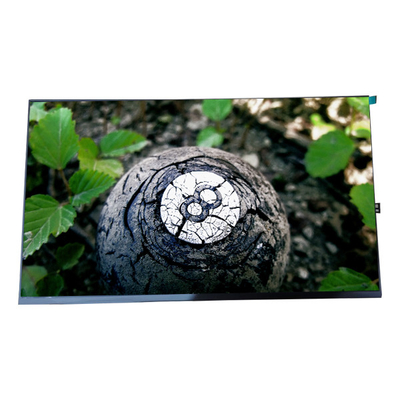

PANDA LM156LFDL01 15.6 inch SLIM 30PIN 1920*1080 LAPTOP LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | PANDA |
| Model Number: | LM156LFDL01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM156LFDL01 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 350.66(H)×206.19(V)×5.4(D) Mm | Luminance: | 220 Cd/m² (Typ.) |
| Form Style: | Slim (PCBA Bent, T≤3.0mm) | Designed For: | Laptop |
| Highlight: | laptop lcd replacement,lenovo screen replacement,LCD Screen Display |
||
Product Description
PANDA LM156LFDL01 15.6 inch SLIM 30PIN 1920*1080 LAPTOP LCD SCREEN
LM156LFDL01 Product details :
| PANDA LCD Screen LM156LFDL01 (NCP002E) | |
| Panel Brand | PANDA |
| Panel Model | LM156LFDL01 (NCP002E) |
| Panel Size | 15.6" |
| Panel Type | Oxide TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 350.66(W)×206.19(H)×5.4(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K 46% NTSC |
| Lamp Type | 10S4P WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| PANDA LM156LFDL01 15.6 inch SLIM 30PIN 1920*1080 LAPTOP LCD SCREEN | |
LM156LFDL01 Note:
Be sure to compare your panel with the one shown in the photo - the appearance, fasteners and connector must match.
Pay attention to compatible / incompatible models (if any).
Attention! You will receive one of the compatible models in the delivery, it may not match the one indicated in the header.
In the same laptop model, there may be different, incompatible matrices.
Installation of the panel requires a high qualification of a specialist.
