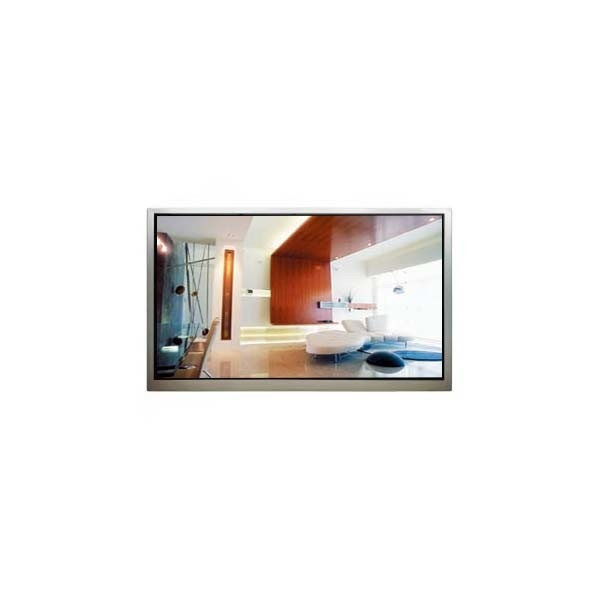

HSD122BUW1-A00 12.2 inch 1920*1200 lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD122BUW1-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD122BUW1-A00 | Diagonal Size: | 12.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 1920(RGB)×1200, WUXGA 185PPI |
| Active Area: | 262.77(W)×164.232(H) Mm | Outline Dim.: | 270.456(W)×172.91(H)×0.8(D) Mm |
| Luminance: | 0 Cd/m² | Designed For: | Laptop、Pad & Tablet |
Product Description
HSD122BUW1-A00 12.2 inch 1920*1200 lcd screen
HSD122BUW1-A00 Product details :
| Brand | HannStar |
| Model P/N | HSD122BUW1-A00 |
| Diagonal Size | 12.2" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1920(RGB)×1200, WUXGA 185PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 262.77(W)×164.232(H) mm |
| Bezel Opening | - |
| Outline Size | 270.456(W)×172.91(H)×0.8(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | - |
| Display Colors | 16.2M |
| Frequency | - |
| Shape Style | - |
| Surface | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Transmissivity | 3.9% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Laptop,Pad & Tablet |
| Driver IC | COGBuilt-in 4 source + 2 gate chips |
| Input Voltage | 10.8/18/-10/5.5V (Typ.)(AVDD/VGH/VGL/VCOM) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
HSD122BUW1-A00 Note :
The price, freight and handling charges we require on the platform do not include any duties or taxes, and the buyer shall be responsible for the taxes or duties it purchases!
1.After placing the order, please carefully confirm your address and remember to write your full name on the trading platform, which is very important for the successful receipt of the package.
2.Your package will shipping out within 1-2 Workingdays after we getting your payment, if orders is made on holiday,it will be shipped out on next working day!
3.Test the display and touch 's function before shipping. 3 months warranty provided against quality problem.
4.If you're not sure what model you need to buy,please contact our company and we will reply you as soon as possible! Please Don't leave us low star feedback before contacting us , we always try our best to provide satisfied solution for our customer.
5.Please contact us if you don’t receive the products in time. Besides, we will check the package with the logistic company that they whether deliver it to you or not
HSD122BUW1-A00 PAYMENT:
After you cancelled the order, money will back to your account within 1-15 business days
HSD122BUW1-A00 Bout transportation:
*We will ship the goods within 1-2 working days after you make the payment. We only ship according to the delivery address. If you want to change the delivery address, please contact me in advance.
*We use the fastest shipping service based on the shipping cost you pay. The transit time is usually 7-30 days and may vary by country/region. Delivery to most European, North American and Asian countries within 7-15 days. Up to 30-45 days in other countries. Provide express service (DHL/FEDEX/TNT/ARAMEX/UPS)
HSD122BUW1-A00 FAQ:
Q: Can I pay my goods HSD122BUW1-A00 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods HSD122BUW1-A00 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of HSD122BUW1-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of HSD122BUW1-A00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
