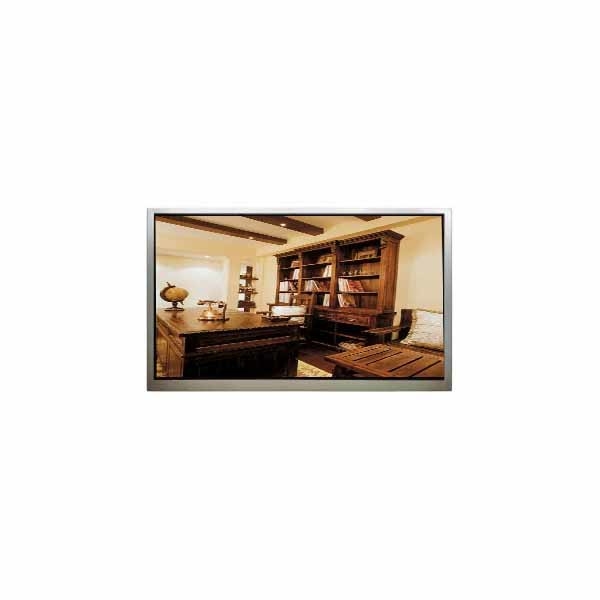

14.0 INCH 1366*768 HSD140HHW4-A00 lcd screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD140HHW4-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD140HHW4-A00 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 1366(RGB)×768, WXGA 112PPI |
| Active Area: | 309.399(W)×173.952(H) Mm | Outline Dim.: | 317.9(W)×184.6(H)×0.8(D) Mm |
| Luminance: | 0 Cd/m² | Designed For: | Laptop |
| Support Color: | 262K 45% NTSC | Frame Rate: | 60Hz |
Product Description
14.0 INCH 1366*768 HSD140HHW4-A00 lcd screen panel
HSD140HHW4-A00 Product details :
| Brand | HannStar |
| Model P/N | HSD140HHW4-A00 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | - |
| Outline Dim. | 317.9(W)×184.6(H)×0.8(D) mm |
| Luminance | 0 cd/m² |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Plate Thickness | 0.40+0.40 mm |
| Support Color | 262K 45% NTSC |
| Form Style | - |
| Frame Rate | 60Hz |
| Treatment | Without Polarizer |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 2.4/5.6 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Transmittance | 6.2% (Typ.)(with Polarizer) |
| Light Source | No B/L |
| Designed For | Laptop |
| Touch Panel | Without |
| D-IC Detail | COG Suggest HX8245-E + HX8695-B02, OTD7101A + OTD9800A, NT51007 + NT39212 |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
HSD140HHW4-A00 Note :
The price, freight and handling charges we require on the platform do not include any duties or taxes, and the buyer shall be responsible for the taxes or duties it purchases!
1.After placing the order, please carefully confirm your address and remember to write your full name on the trading platform, which is very important for the successful receipt of the package.
2.Your package will shipping out within 1-2 Workingdays after we getting your payment, if orders is made on holiday,it will be shipped out on next working day!
3.Test the display and touch 's function before shipping. 3 months warranty provided against quality problem.
4.If you're not sure what model you need to buy,please contact our company and we will reply you as soon as possible! Please Don't leave us low star feedback before contacting us , we always try our best to provide satisfied solution for our customer.
5.Please contact us if you don’t receive the products in time. Besides, we will check the package with the logistic company that they whether deliver it to you or not
HSD140HHW4-A00 PAYMENT:
After you cancelled the order, money will back to your account within 1-15 business days
HSD140HHW4-A00 Bout transportation:
*We will ship the goods within 1-2 working days after you make the payment. We only ship according to the delivery address. If you want to change the delivery address, please contact me in advance.
*We use the fastest shipping service based on the shipping cost you pay. The transit time is usually 7-30 days and may vary by country/region. Delivery to most European, North American and Asian countries within 7-15 days. Up to 30-45 days in other countries. Provide express service (DHL/FEDEX/TNT/ARAMEX/UPS)
HSD140HHW4-A00 FAQ:
Q: Can I pay my order of HSD140HHW4-A00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HSD140HHW4-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of HSD140HHW4-A00 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
