15.6 Inch LCD Screen Monitor 1920x1080 FHD IPS 60HZ 30PIN LM156LFCL01
Product Details:
| Place of Origin: | China |
| Brand Name: | PANDA |
| Model Number: | LM156LFCL01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM156LFCL01 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 141PPI |
| Active Area: | 344.16(W)×193.59(H) Mm | Outline(mm): | 350.66(W)×216.69(H)×3.2(D) |
| Luminance: | 220 (Typ.)(cd/m²) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| High Light: | LCD Screen Monitor 141PPI,LM156LFCL01 LCD Screen Monitor,Symmetry 15.6 inch laptop lcd panel |
||
Product Description

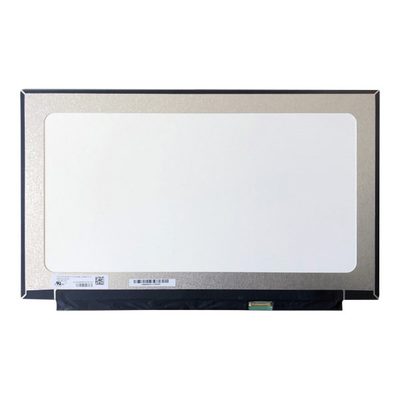

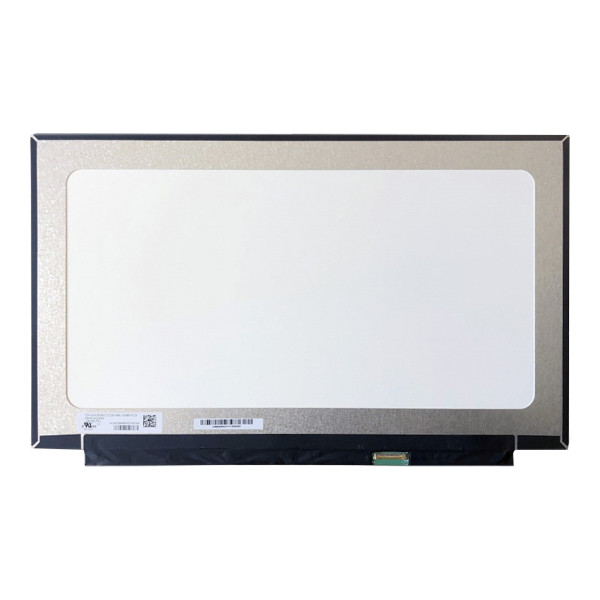

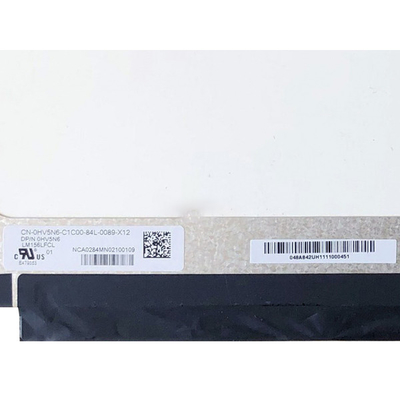

15.6 inch LCD Screen monitor 1920x1080 FHD IPS 60HZ 30PIN LM156LFCL01
LM156LFCL01 Product details :
| PANDA LCD Screen LM156LFCL01 | |
| Panel Brand | PANDA |
| Panel Model | LM156LFCL01 |
| Panel Size | 15.6" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 350.66(W)×216.69(H)×3.2(D) mm |
| Surface | Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 15.6 inch LCD Screen monitor 1920x1080 FHD IPS 60HZ 30PIN LM156LFCL01 | |
LM156LFCL01 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering.
1.Tell us the LCD model name in your hand now ,such as : LM156LFCL01
2.Tell us your laptop name , such as : NP530U3C,NP300E5A, if you don't have the LCD model.
3.Please check the LCD screen size and resolution.
4.Please check the signal interface (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position. Contact me if u have any question, We will respond within 24 hours. If you buy more quantity, Please contact us .buy more parts. used the "Add to cart" we will make the discount for you.
LM156LFCL01 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
LM156LFCL01 Shipping and Package :
LM156LFCL01 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
LM156LFCL01 Return:
· Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
· Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
LM156LFCL01 FAQ:
Q: Can you give me a discount if I need a large quantity of LM156LFCL01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of LM156LFCL01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of LM156LFCL01 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of LM156LFCL01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
