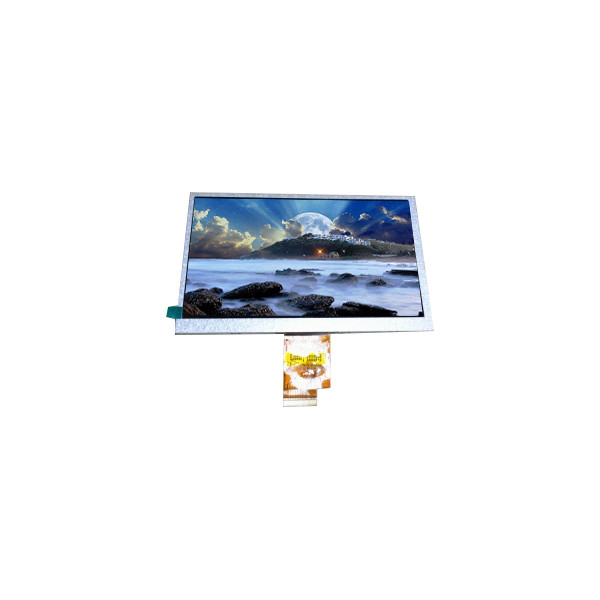

7.0 Inch 1024*600 TFT LCD Screen Display TM070DDH07 For Portable Navigation
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM070DDH07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TM070DDH07 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Active Area: | 153.6(W)×90(H) Mm |
| Bezel Opening: | 156.2(W)×92.6(H) Mm | Outline Size: | 165.75(W)×105.39(H)×3.7(D) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Viewing Angle: | 75/75/70/75 (Typ.)(CR≥10) | Designed For: | Portable Navigation、Digital Photo Frame、Portable DVD Player |
| Highlight: | CSTN LCD Screen Display,LCD Screen Display KCG047QVLAE-G050 |
||
Product Description
7.0 Inch 1024*600 TFT LCD Screen Display TM070DDH07 For Portable Navigation
TM070DDH07 Product details :
| Brand | TIANMA |
| Model P/N | TM070DDH07 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Bezel Opening | 156.2(W)×92.6(H) mm |
| Outline Size | 165.75(W)×105.39(H)×3.7(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Best View on | 12 o'clock |
| Display Colors | 262K/16.7M 50%NTSC |
| Frequency | 60Hz |
| Weight | TBD |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 20 (Typ.)(Tr+Td) |
| Lamp Type | 3S6P WLED , 20K hours , Without Driver |
| Touch Screen | Without |
| Application | Portable Navigation,Digital Photo Frame,Portable DVD Player |
| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pinsFPC |
| Input Voltage | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
TM070DDH07 Extremely Important:
• Please review the product image and description carefully before purchasing.
• The Screen Size, Resolution and Connector Type must be the same as our screen.
• If you are not sure, please contact us and provide us with specific model and pictures of your current screen.
• If you do not understand anything about this listing, or want to confirm whether the product is suitable for your own panel, please contact the seller at the first time, and we will answer you in time.
TM070DDH07 Payment:
1).Alipay/Credit card/bank transfer /western union /moneybooker/money programs etc online support.
2). Payment must be made within 3 days of order.
3).If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be
completed within 3 days.
4).if meet questions on payment ,contact us anytime.
TM070DDH07 Shipping and Package :
TM070DDH07 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
TM070DDH07 RETURN POLICY:
Customer should return items in original condition within 3 days if any item is defective upon receipt.Buyer is responsible for return shipping & handling costs.
TM070DDH07 FAQ:
Q: Can You declare my order of TM070DDH07 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of TM070DDH07 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of TM070DDH07 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order TM070DDH07 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
