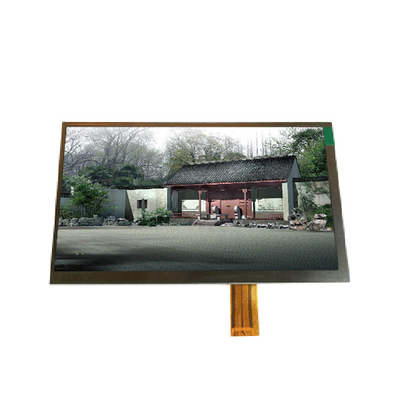

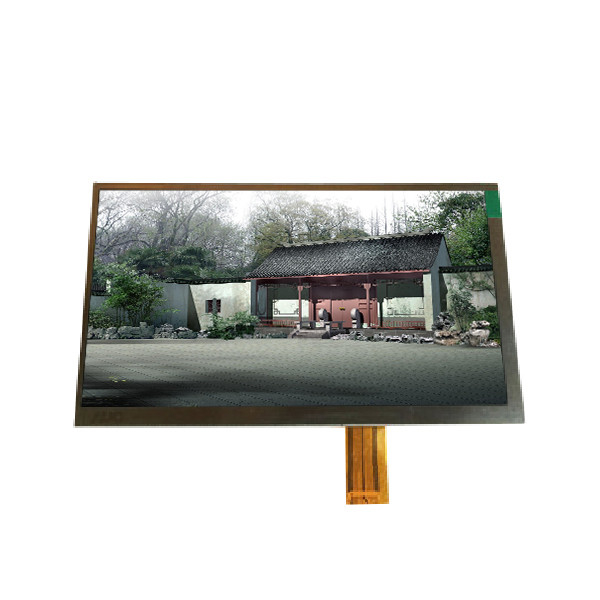

480x234 AUO 26 Pin 7 Inch TFT LCD Display A070FW03 V6 RGB Vertical Stripe
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070FW03 V6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070FW03 V6 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | LCM, A-Si TFT-LCD | Resolution: | 480(RGB)×234 76PPI |
| Display Area: | 154.08(H)×86.58(V) Mm | Outline(mm): | 164.9(H)×100(V)×6(D) Mm |
| Brightness: | 500 Cd/m² (Typ.) | Used For: | Automotive Display |
| Highlight: | 7 Inch TFT LCD Display,TFT LCD Display A070FW03 V6,26 Pin AUO LCD Screen |
||
Product Description
RGB Vertical Stripe 480x234 AUO 26 pin 7 inch TFT LCD Display A070FW03 V6
A070FW03 V6 Product details :
| AUO LCD SCREEN A070FW03 V6 | |
| Panel Brand | AUO |
| Panel Model | A070FW03 V6 |
| Panel Size | 7.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 154.08(H)×86.58(V) mm |
| Outline Size | 164.9(H)×100(V)×6(D) mm |
| Surface | Antiglare (Haze 25%) |
| Brightness | 500 (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing Angle | 60/60/40/60 (Typ.) (CR≥10 |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 262K |
| Lamp Type | CCFL [1 pcs] , 10K hours , W/O Driver |
| Support Color | Full color |
| Frequency | 60Hz |
| Designed For | Automotive Display |
| Touch Panel | Without |
| Panel Weight | 160±10g |
| Signal Interface | TFT Specific Analog RGB , 26 pins , FPC |
| Environment | Storage temperature: -40 ~ 95 °C Operating temperature: -30 ~ 85 °C ; Vibration resistance: 2.9G (28.4 m/s²) |
| RGB Vertical Stripe 480x234 AUO 26 pin 7 inch TFT LCD Display A070FW03 V6 | |
