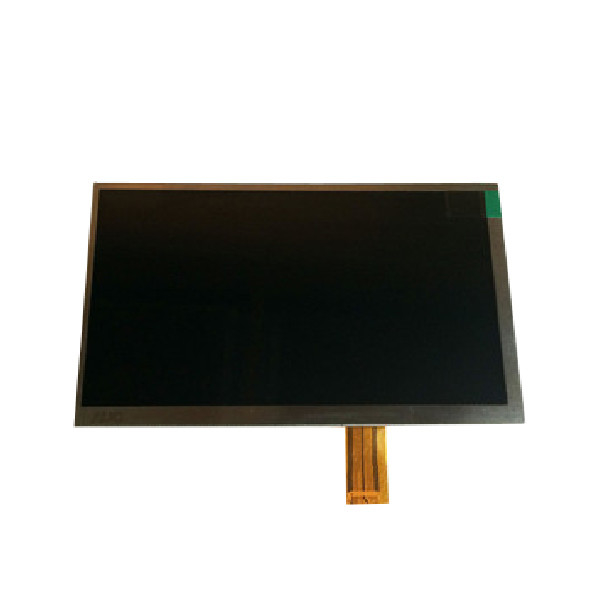

AUO 7.0 Inch LCD Screen A070FW03 V5 400*234 26pins Antiglare
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070FW03 V5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070FW03 V5 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | LCM, A-Si TFT-LCD | Resolution: | 480(RGB)×234 76PPI |
| Display Area: | 154.08(H)×86.58(V) Mm | Outline(mm): | 167.1 × 102 × 11.6 Mm (H×V×D) |
| Brightness: | 300 Cd/m² (Typ.) | Used For: | Digital Photo Frame Portable DVD Player Video Door Phone |
| Highlight: | 400*234 7.0 Inch LCD Screen,7.0 Inch LCD Screen A070FW03 V5,Antiglare AUO LCD Screen |
||
Product Description
AUO 7.0 INCH A070FW03 V5 400*234 26pins LCD SCREEN
A070FW03 V5 Product details :
| AUO LCD Screen A070FW03 V5 | |
| Panel Brand | AUO |
| Panel Model | A070FW03 V5 |
| Screen size | 7.0 inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 400(RGB)×234 71PPI |
| Pixel Format | RGB vertical bars |
| Display size | 154.08 × 86.58 mm (H×V) |
| Outline(mm) | 167.1 × 102 × 11.6 mm (H×V×D) |
| Surface | Antiglare (Haze 5.5%) |
| Brightness (cd/m²) | 300 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| Viewing Angle | 65/65/40/65 (Typ.) (L/R/U/D) |
| Responding speed | 12/18 (Typ.)(Tr/Td) ms |
| Optical mode | TN, Normally White, Transmissive |
| Backlight type | CCFL [1 pcs] , 40K hours, no driver |
| Screen weight | 180±10g |
| Used for | Digital Photo Frame Portable DVD Player Video Door Phone |
| Touchscreen | Without |
| Signal system | 26 pins TFT Specific Analog RGB , FPC |
| Supply voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum rating | Storage temperature: -40 ~ 95 °C Operating temperature: -30 ~ 70 °C |
| AUO 7.0 INCH A070FW03 V5 400*234 26pins LCD SCREEN | |
