Antiglare 7 Inch LCD Display A070FW03 V3 480*234 76PPI 26 Pins FPC
Product Details:
| Place of Origin: | China |
| Brand Name: | A070FW03 V3 |
| Model Number: | A070FW03 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070FW03 V3 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | LCM, A-Si TFT-LCD | Resolution: | 480(RGB)×234 76PPI |
| Display Area: | 154.08(H)×86.58(V) Mm | Outline(mm): | 164.9(H)×100(V)×6(D) Mm |
| Brightness: | 300 Cd/m² (Typ.) | Used For: | Digital Photo Frame Portable DVD Player Video Door Phone |
| High Light: | Antiglare 7 Inch LCD Display,7 Inch LCD Display A070FW03 V3 |
||
Product Description

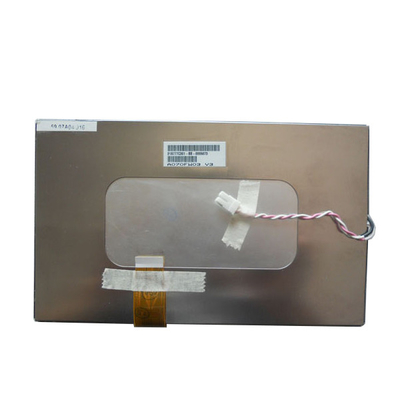

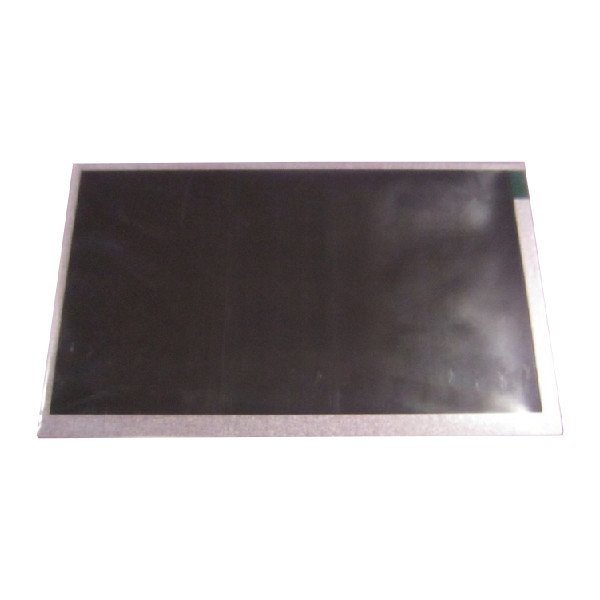

7 inch A070FW03 V3 480*234 lcd display
A070FW03 V3 Product details :
| AUO LCD SCREEN A070FW03 V3 | |
| Panel Brand | AUO |
| Panel Model | A070FW03 V3 |
| Panel Size | 7.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 154.08(H)×86.58(V) mm |
| Outline Size | 164.9(H)×100(V)×6(D) mm |
| Surface | Antiglare (Haze 25%) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| View Direction | 6 o'clock |
| Viewing Angle | 65/65/40/65 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | Full color |
| Lamp Type | 1 pcs CCFL , 10K hours, no driver |
| Panel Weight | 160g |
| Application | Digital Photo Frame Portable DVD Player Video Door Phone |
| Touch Panel | Without |
| Signal Interface | TFT Specific Analog RGB , 26 pins , FPC |
| Input Voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Storage temperature: -20 ~ 70 °C Operating temperature: -10 ~ 60 °C |
| 7 inch A070FW03 V3 480*234 lcd display | |
A070FW03 V3 Customer Service Policy
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
A070FW03 V3 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
A070FW03 V3 Return/Refund:
1.If you buy the wrong items or you don't want the item that you bought, you can return it back to us within 3-5 days , but you should offer the shipping fee. Thanks.
2.A full refund will be given if items are returned in their original condition.
3.Buyers are responsible for return shipping with proper packaging.
4.We will bear all the shipping cost if the product(s) is (are) not as advertised.
5.The buyer will take the return shipping cost , if it is broken by yourself or order the wrong product.
6.Once receiving items, we will refund you immediately.
7.you have 7 days to contact us and 30 days to return it from the date it was received.If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE you A REFUND OR REPLACEMENT. There are NO EXCEPTIONS!
A070FW03 V3 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of A070FW03 V3 ?
A: Of course!sample order is welcome !
Q: How to make payment of A070FW03 V3 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of A070FW03 V3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
A070FW03 V3 Shipping and Package :
