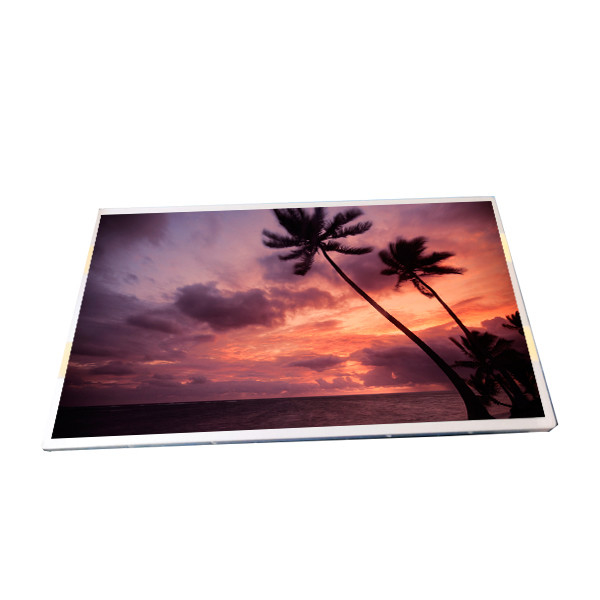

1366*768 LCD Monitor 11.6 Inch B116XAN06.1 HW0A With Slim Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XAN06.1 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B116XAN06.1 HW0A | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Active Area: | 256.125(W)×144(H) Mm | Response Time: | 27 (Typ.)(Tr+Td) Ms |
| Operating Mode: | AHVA, Normally Black, Transmissive | Designed For: | Laptop |
| Support Color: | 262K 50% NTSC | Outline Shape: | Slim (PCBA Flat, T≤3.2mm) |
| Highlight: | A035VL01 V6 WLED LCD Monitor,Video Camera WLED LCD Monitor |
||
Product Description
1366*768 LCD Monitor 11.6 Inch B116XAN06.1 HW0A With Slim Laptop
B116XAN06.1 HW0A Product details :
| Brand | AUO |
| Model P/N | B116XAN06.1 HW0A |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 278×168×3 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane) , eDP1.2 , Connector 30 pins |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B116XAN06.1 HW0A PAYMENT:
- We accept paypal ,Escrow, Credit Card,T/T,Western Union,WebMoney Qiwi wallet and Brazil Boleto.
- We send goods within 1-5business days after receiving the payment.
- Orders will be canceled if payment is not received within 10 days of purchase.
B116XAN06.1 HW0A About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
B116XAN06.1 HW0A Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
B116XAN06.1 HW0A RETURNS:
- If you receive an incorrect or defective product,please email us within 7 days of receiving the product.
- Later than 7 days the item cannot be accepted for returning.
- If the order is defective,we will send replacement parts to you after receiving the proof of the defective photos of the items that you received, and no additional charge. Shipping and handling are not refundable.
- All returns must include all original items undamaged, in re-saleable condition,l packaging including manuals, warranty forms,etc.
B116XAN06.1 HW0A Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
B116XAN06.1 HW0A FAQ:
Q: Do you accept sample orders of B116XAN06.1 HW0A ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of B116XAN06.1 HW0A vai credit card ?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of B116XAN06.1 HW0A ?
A: The order will be shipped within 2-3 working days after received your payment.
B116XAN06.1 HW0A Shipping and Package :
