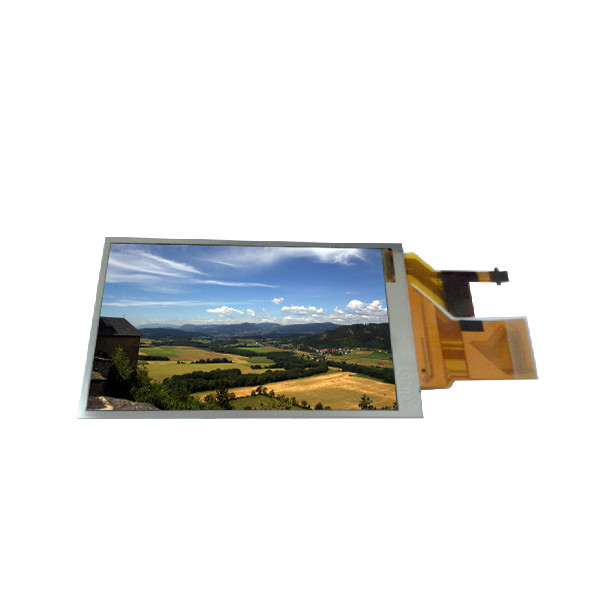

A035VL01 V4 800*480 AUO LCD Screen WVGA 268PPI RGB Vertical Stripe
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A035VL01 V4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A035VL01 V4 | Diagonal Size: | 3.5" |
|---|---|---|---|
| Panel Type: | LCM, A-Si TFT-LCD | Resolution: | 800(RGB)×480, WVGA, 268PPI |
| Outline Size: | 86.1(W)×51.66(H) ×2.645(D) Mm | Response Time: | 15/30 (Typ.)(Tr/Td) Ms |
| Panel Weight: | 25.0±2.5g | Designed For: | Digital Video Camera |
| Highlight: | A035VL01 V4 AUO LCD Screen,WVGA AUO LCD Screen |
||
Product Description
AUO RGB Vertical Stripe A035VL01 V4 800*480 LCD SCREEN
A035VL01 V4 Product details :
| AUO LCD SCREEN A035VL01 V4 | |
| Panel Brand | AUO |
| Panel Model | A035VL01 V4 |
| Panel Size | 3.5" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480, WVGA, 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 75.6(H)×45.36(V) mm |
| Bezel Opening | 77.9(H)×47.76(V) mm |
| Outline Size | 86.1(W)×51.66(H) ×2.645(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 315 cd/m² (Typ.) |
| Contrast Ratio | 800: 1 (Typ.) [Transmission] |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, normally white display, transmissive |
| Response Time | 15/30 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M |
| Lamp Type | WLED , W/O Driver |
| Frequency | 60Hz |
| Panel Weight | 25.0±2.5g |
| Designed For | Digital Video Camera |
| Touch Panel | PCAP, I²C |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI , 70 pins Connector |
| Input Voltage | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| Environment | Working temperature: -10 ~ 60 °C; Storage temperature: -25 ~ 70 °C |
| AUO RGB Vertical Stripe A035VL01 V4 800*480 LCD SCREEN | |
A035VL01 V4 PAYMENT:
- We accept paypal ,Escrow, Credit Card,T/T,Western Union,WebMoney Qiwi wallet and Brazil Boleto.
- We send goods within 1-5business days after receiving the payment.
- Orders will be canceled if payment is not received within 10 days of purchase.
A035VL01 V4 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
A035VL01 V4 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
A035VL01 V4 RETURNS:
- If you receive an incorrect or defective product,please email us within 7 days of receiving the product.
- Later than 7 days the item cannot be accepted for returning.
- If the order is defective,we will send replacement parts to you after receiving the proof of the defective photos of the items that you received, and no additional charge. Shipping and handling are not refundable.
- All returns must include all original items undamaged, in re-saleable condition,l packaging including manuals, warranty forms,etc.
A035VL01 V4 FAQ:
Q: How do you ship my goods A035VL01 V4 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AUO A035VL01 V4 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel glass AUO A035VL01 V4 at a very low value ?
A: Yes , we can . pls inform us before shipping .
A035VL01 V4 Shipping and Package :
