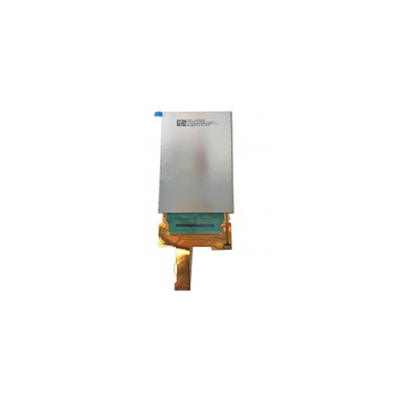

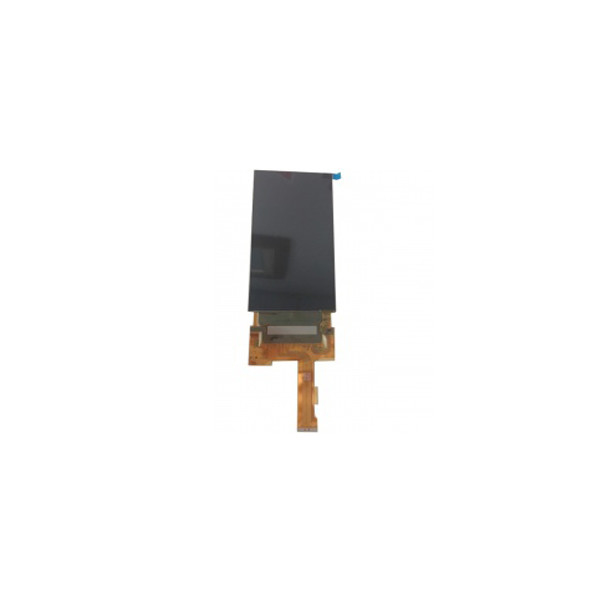

LPM060A505B 6.0 inch LCD Screen 1440*2880 54 Pins For Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPM060A505B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LPM060A505B | Diagonal Size: | 6.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1440(RGB)×2880 537PPI |
| Display Area: | 68.04(W)×136.08(H) Mm | Brightness: | 400 Cd/m² (Typ.) |
| Designed For: | Mobile Phone | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Display Mode: | IPS, Normally Black, Transmissive | Lamp Type: | 3 Strings WLED, Without Driver |
| Touch Screen: | PCAP, I²C | ||
| Highlight: | A035VL01 V2 AUO LCD Screen,Digital Camera AUO LCD Screen |
||
Product Description
LPM060A505B 6.0 inch LCD Screen 1440*2880 54 Pins For Mobile Phone
LPM060A505B Product details :
| Brand | JDI |
| Model P/N | LPM060A505B |
| Diagonal Size | 6.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1440(RGB)×2880 537PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×136.08(H) mm |
| Bezel Opening | - |
| Brightness | 400 cd/m² (Typ.) |
| Viewing Angle | 50/50/70/70 (Typ.)(CR≥100) |
| Best View on | Symmetry |
| Display Colors | 16.7M 99%DCI-P3 |
| Frequency | 60Hz |
| Weight | - |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 32 (Typ.)(Tr+Td) |
| Lamp Type | 3 strings WLED, Without Driver |
| Touch Screen | PCAP, I²C |
| Application | Mobile Phone |
| Signal Interface | MIPI (2 ch, 4 data lanes), 54 pinsConnector |
| Input Voltage | 1.8/5.5/5.5V (Typ.)(VDDI/AVDD/AVEE) |
| Environment | Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C |
LPM060A505B PAYMENT:
- We accept paypal ,Escrow, Credit Card,T/T,Western Union,WebMoney Qiwi wallet and Brazil Boleto.
- We send goods within 1-5business days after receiving the payment.
- Orders will be canceled if payment is not received within 10 days of purchase.
LPM060A505B SHIPMENT:
1.Items are only shipped after payment is received.
2. DHL UPS Fedex or EMS is available for shipping.
3.Free shipping of charge for China post Air Mail/HK post Air Mail for special item.when you chose the shipping method, please ask our seller to change the total charge for special products.
4.Delivery time:
DHL,UPS,Fedex,EMS express shipping usually take 3-10 working days and China post Air Mail/HK post Air Mail shipping usually take 7-35 days depends on the country delivered to. In rare cases,the strict custom clearances will make the delivery time a bit longer,please be patient.
5. Any accidents,delays or other issues are the responsibility of the shipping service.
6.Any import charges or fees are the buyer's responsibility.
7.Please check out your ADDRESS carefully when processing order.
8.Feel free to Contact us with any question,we will offer you satisfying answer
LPM060A505B Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LPM060A505B Return and feedback
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
If you are pleased with your purchase, please leave us positive feedback once receiving the item, and we will return the feedback upon you.
If you have any problem with the outcome of the transaction or product, please don't respond with negative feedback before contacting us. we will do our best to resolve your case ASAP.
If you meet any questions,pls contact me first,i will try to solve for you. Negative feedback is not acceptable before contacting me.
LPM060A505B FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the LPM060A505B sample order?
A: Yes , sample order is welcome.
Q: Can you test the lcd panel LPM060A505B before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long is the warranty of LPM060A505B ?
A: 90DAYS.
Q: How long will I receive my goods of lcd LPM060A505B ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
LPM060A505B Shipping and Package :
