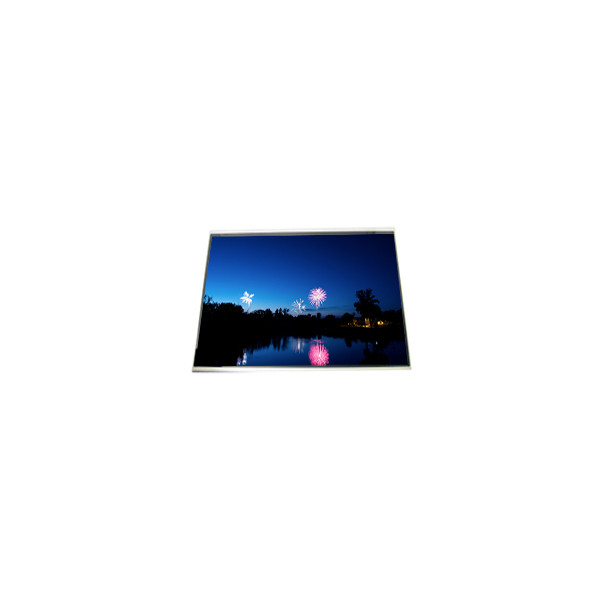

HSD060BHW3-D00 6.0 inch LCD Screen 720*1280 245PPI lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD060BHW3-D00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD060BHW3-D00 | Diagonal Size: | 6.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 720(RGB)×1280, WXGA 245PPI |
| Active Area: | 74.52(W)×132.48(H) Mm | Pixel Configuration: | RGB Vertical Stripe |
| Designed For: | Mobile Phone | Surface: | Without Polarizer |
| Display Mode: | IPS Pro, Normally Black, Transmissive | Transmissivity: | 11.9% (Typ.)(without Polarizer) |
| Highlight: | AUO LCD Screen 70PPI,A040CN01 V0 AUO LCD Screen |
||
Product Description
HSD060BHW3-D00 6.0 inch LCD Screen 720*1280 245PPI lcd panel
HSD060BHW3-D00 Product details :
| Brand | HannStar |
| Model P/N | HSD060BHW3-D00 |
| Diagonal Size | 6.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1280, WXGA 245PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 74.52(W)×132.48(H) mm |
| Bezel Opening | - |
| Outline Size | 77.32(W)×140.14(H)×0.4(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.20+0.20 mm |
| Display Colors | 16.7M 70%NTSC |
| Frequency | - |
| Weight | - |
| Surface | Without Polarizer |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Transmissivity | 11.9% (Typ.)(without Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Mobile Phone |
| Driver IC | COGSuggest HX8394-A01, HX8394-B, NT35520, NT35521, OTM1283A, OTM1288A |
| Signal Interface | MIPI (2 data lanes) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
