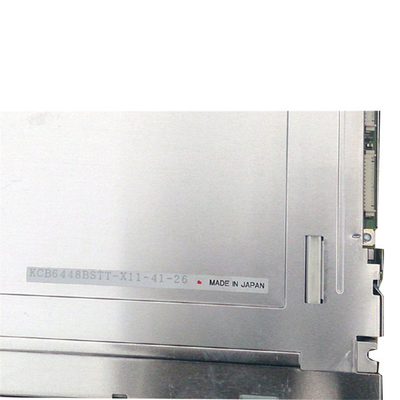

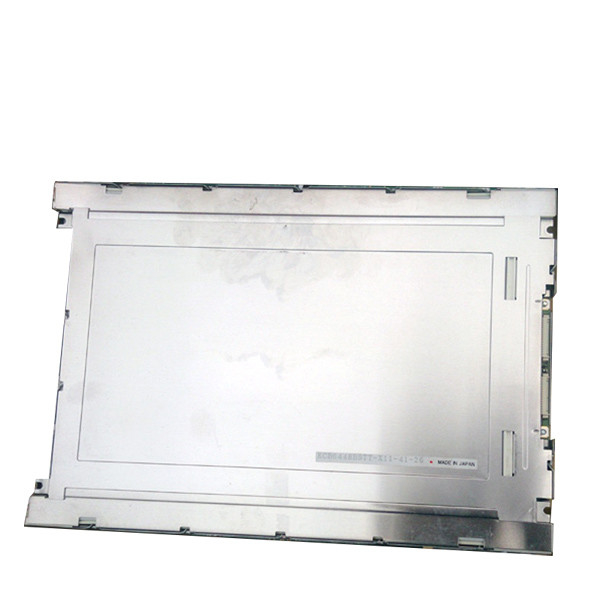

Kyocera KCB6448BSTT-X11 10.4 Inch TFT LCD Screen 640*480 LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCB6448BSTT-X11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCB6448BSTT-X11 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.07(W)×162.27(H) Mm | Luminance: | 130 Cd/m² (Typ.) |
| Frame Rate: | 75Hz | Designed For: | Industrial |
| High Light: | TFT LCD Screen 640*480,KCB6448BSTT-X11 TFT LCD Screen,10.4 Inch LCD Display Module |
||
Product Description
Kyocera KCB6448BSTT-X11 10.4 inch tft lcd screen 640*480 lcd display module
KCB6448BSTT-X11 Product details :
| kyocera LCD SCREEN KCB6448BSTT-X11 | |
| Panel Brand | kyocera |
| Panel Model | KCB6448BSTT-X11 |
| Panel Size | 10.4 inches |
| Panel Type | CSTN-LCD , LCM |
| Resolution | 640(RGB)×480 VGA 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(horizontal)×158.4(vertical) mm |
| Bezel Opening | 215.07(horizontal)×162.27(vertical) mm |
| Brightness | 130 cd/m² (Typ.) |
| Contrast Ratio | 20:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/35/20 (Typ.) (CR≥10) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 160/80 (Typ.)(Tr/Td) ms |
| Display Colors | Color 40% NTSC |
| Lamp Type | CCFL [2 pcs] , no driver |
| Frequency | 75Hz |
| Touch Screen | Without |
| Designed For | Industrial |
| Signal Interface | Parallel Data (2ch, 8-bit) Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating temperature: 0 ~ 40 °C ; Storage temperature: -20 ~ 60 °C |
| original 10.4 inch KCB6448BSTT-X11 lcd screen display for Industrial control | |
KCB6448BSTT-X11 PAYMENT:
- We accept paypal ,Escrow, Credit Card,T/T,Western Union,WebMoney Qiwi wallet and Brazil Boleto.
- We send goods within 1-5business days after receiving the payment.
- Orders will be canceled if payment is not received within 10 days of purchase.
KCB6448BSTT-X11 Shipping and Package :
KCB6448BSTT-X11 SHIPMENT:
1.Items are only shipped after payment is received.
2. DHL UPS Fedex or EMS is available for shipping.
3.Free shipping of charge for China post Air Mail/HK post Air Mail for special item.when you chose the shipping method, please ask our seller to change the total charge for special products.
4.Delivery time:
DHL,UPS,Fedex,EMS express shipping usually take 3-10 working days and China post Air Mail/HK post Air Mail shipping usually take 7-35 days depends on the country delivered to. In rare cases,the strict custom clearances will make the delivery time a bit longer,please be patient.
5. Any accidents,delays or other issues are the responsibility of the shipping service.
6.Any import charges or fees are the buyer's responsibility.
7.Please check out your ADDRESS carefully when processing order.
8.Feel free to Contact us with any question,we will offer you satisfying answer
KCB6448BSTT-X11 RETURNS:
- If you receive an incorrect or defective product,please email us within 7 days of receiving the product.
- Later than 7 days the item cannot be accepted for returning.
- If the order is defective,we will send replacement parts to you after receiving the proof of the defective photos of the items that you received, and no additional charge. Shipping and handling are not refundable.
- All returns must include all original items undamaged, in re-saleable condition,l packaging including manuals, warranty forms,etc.
KCB6448BSTT-X11 FAQ:
Q: Do you accept the sample of KCB6448BSTT-X11 ?
A: Yes , Welcome !
Q: How to order Kyocera TFT-LCD KCB6448BSTT-X11 ?
A: We accept the T/T , Western union , paypal .
Q: Can you declared low value for my order Kyocera KCB6448BSTT-X11 when shipping?
A: Yes, We can do it for you if you need.
Q: What happen if the LCD Screen KCB6448BSTT-X11 received can't work ?
A: Our KCB6448BSTT-X11 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
