KCB6448BSTT-X1 LCD Display Screen Panel 10.4 Inch 640*480 Parallel Data Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCB6448BSTT-X1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCB6448BSTT-X1 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.07(W)×162.27(H) Mm | Contrast Ratio: | 20:1 (Typ.) (TM) |
| Display Colors: | Color 40% NTSC | Application: | Industrial |
| High Light: | KCB6448BSTT-X1 LCD Display Screen Panel,40% NTSC LCD Display Screen Panel,Parallel Data 10.4 Inch LCD Display |
||
Product Description

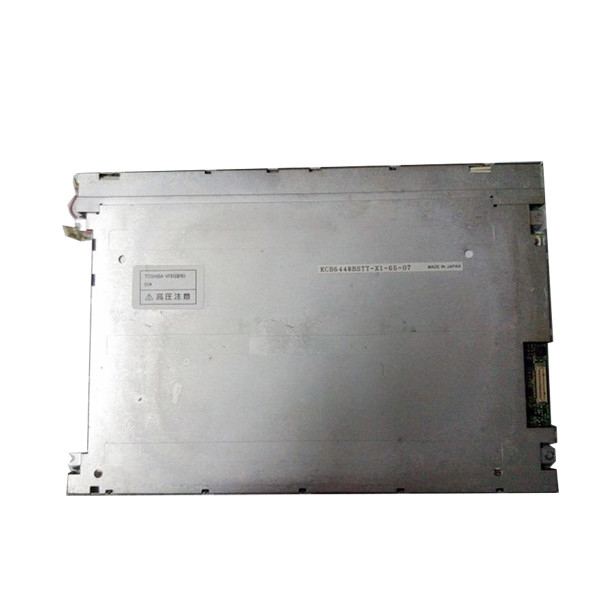

KCB6448BSTT-X1 10.4 Inch 640*480 LCD Display Screen Panel
KCB6448BSTT-X1 Product details :
| Kyocera LCD SCREEN KCB6448BSTT-X1 | |
| manufacturer | Kyocera |
| Model Name | KCB6448BSTT-X1 |
| screen size | 10.4 inch |
| Screen type | CSTN-LCD, LCM |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 211.2(H)×158.4(V) mm |
| Visual size | 215.07(H)×162.27(V) mm |
| Contrast | 20:1 (Typ.) (TM) |
| Optical mode | STN, Normally Black, Transmissive |
| Responding time | 160/80 (Typ.)(Tr/Td) |
| Backlight type | CCFL [1 pcs] , W/O Driver |
| Support Color | Color 40% NTSC |
| Apply to | Industrial |
| Refresh rate | 75 Hz |
| Touch function | No touch |
| signal system | Parallel Data (2ch, 8-bit) Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -20 ~ 60 °C |
| KCB6448BSTT-X1 10.4 Inch 640*480 LCD Display Screen Panel | |
