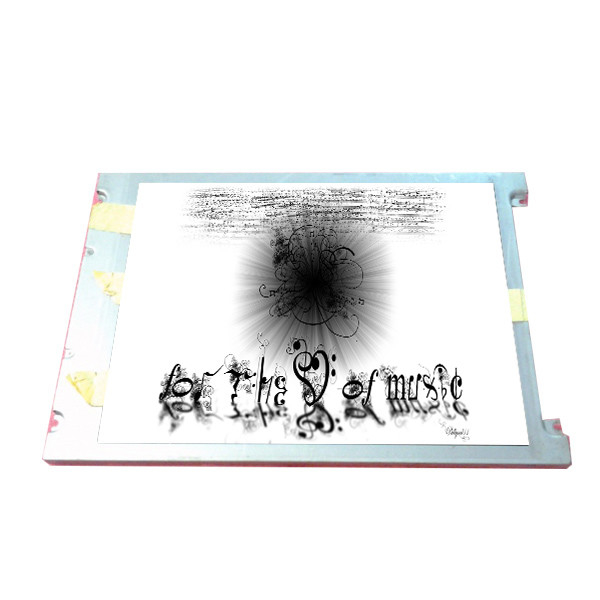

KYOCERA CSTN 10.4 Inch LCD Panel 640*480 VGA 76PPI KCB104VG2CA-G43
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCB104VG2CA-G43 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCB104VG2CA-G43 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.2(W)×162.3(H) Mm | Outline Dim.: | 264(W)×183(H)×9(D) Mm |
| Weight: | 540g | Designed For: | Industrial |
| High Light: | CSTN 10.4 inch LCD Panel,VGA 10.4 inch LCD Panel,KCB104VG2CA-G43 LCD Panel |
||
Product Description
KYOCERA 640*480 VGA 10.4 inch CSTN LCD Panel KCB104VG2CA-G43
KCB104VG2CA-G43 Product details :
| kyocera LCD SCREEN KCB104VG2CA-G43 | |
| Panel Brand | kyocera |
| Panel Model | KCB104VG2CA-G43 |
| Panel Size | 10.4 inches |
| Panel Type | LCM , CSTN-LCD |
| Resolution | 640(RGB)×480 VGA 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2 × 158.4 mm (H×V) |
| Bezel Opening | 215.2 × 162.3 mm (H×V) |
| Outline Size | 264 × 183 × 9 mm (H×V×D) |
| Surface | Glare (Haze 0%) |
| Brightness | 160 (Typ.) |
| Contrast Ratio | 30:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/35/20 (Typ.) (CR≥10) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 160/80 (Typ.)(Tr/Td) ms |
| Display Colors | Color 36% NTSC |
| Lamp Type | 2 pcs CCFL , 40K hours, optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 540g |
| Used for | Industrial |
| Signal Interface | Parallel Data (8-bit) , terminal, 29 pins |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| KYOCERA 640*480 VGA 10.4 inch CSTN LCD Panel KCB104VG2CA-G43 | |
KCB104VG2CA-G43 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering.
1.Tell us the LCD model name in your hand now ,such as : KCB104VG2CA-G43
2.Please check the LCD screen size and resolution.
3.Please check the signal interface (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin ) and position. Contact me if u have any question, We will respond within 24 hours. If you buy more quantity, Please contact us .buy more parts. used the "Add to cart" we will make the discount for you.
KCB104VG2CA-G43 Shipping and Package :
KCB104VG2CA-G43 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
KCB104VG2CA-G43 ESTIMATED DELIVERY TIME:
- We Would Ship Out your order within 24 hours
- Economy: 15-50 days
- Standard: 10-35 days
- Expedited: 4-7 days
KCB104VG2CA-G43 About guarantee:
1: The product is damaged during the warranty period, we can replace it for free or get a full refund. For some high-value products, the buyer needs to return the package to us.
2: Otherwise, you will lose the warranty. If the product has any problems, we will try our best to solve the problem and provide good after-sales service. Please keep in touch with us.
KCB104VG2CA-G43 FAQ:
Q: Do you accept the KCB104VG2CA-G43 sample order?
A: Yes , sample order is welcome.
Q: How long is the warranty of Kyocera LCD PANEL KCB104VG2CA-G43 ?
A: 90DAYS.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you test the lcd panel KCB104VG2CA-G43 before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long will I receive my goods of lcd KCB104VG2CA-G43 ?
A: Generally speaking ,It will take 3-8 days to your hand by DHL/FEDEX/UPS/TNT.
