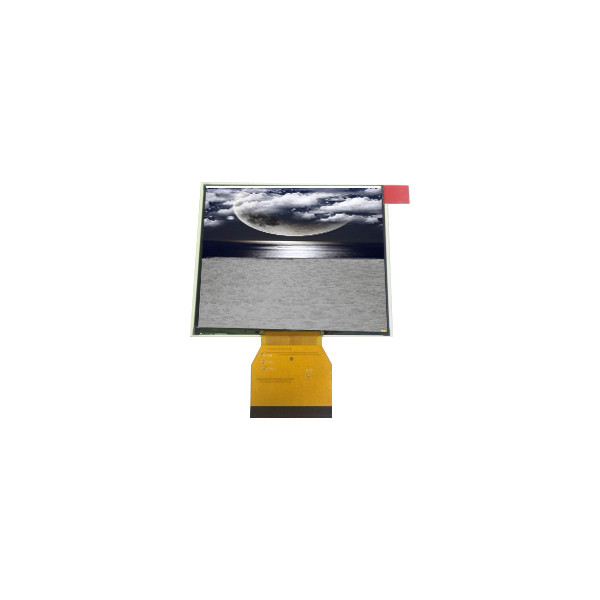

6.2 Inch 720*1520 TFT LCD Panel Module TM062JYSC01
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM062JYSC01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TM062JYSC01 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 720(RGB)×1520 270PPI |
| Active Area: | 67.608(W)×142.728(H) Mm | Outline (mm): | 69.608(H)×148.328(V)×0.3(D) Mm |
| Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) | Application: | Mobile Phone |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | View Direction: | Symmetry |
| Highlight: | 3.5 Inch IPS TFT LCD Panel,IPS TFT LCD Panel,LCD Panel Module A035VL01 V1 |
||
Product Description
6.2 Inch 720*1520 TFT LCD Panel Module TM062JYSC01
TM062JYSC01 Product details :
| Brand | TIANMA |
| Model P/N | TM062JYSC01 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 720(RGB)×1520 270PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.608(W)×142.728(H) mm |
| Bezel Opening | - |
| Outline Dim. | 69.608(H)×148.328(V)×0.3(D) mm |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Typ.)(Tr+Tf) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Plate Thickness | 0.15+0.15 mm |
| Transmittance | 5.0% (Typ.)(with APCF) |
| Support Color | 16.7M 72%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Suggest NT36525 |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
TM062JYSC01 About Our:
Our shop has been engaged in physical store wholesale and online retail wholesale in the LCD screen industry for 12 years.
There are many models to choose from and will be uploaded one after another. If you need any screen, you can leave me a message.
TM062JYSC01 Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
TM062JYSC01 Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
TM062JYSC01 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
TM062JYSC01 Note :
-Installation guide not included, We are not responsible for any damage caused by installation of this accessory, please be sure you know how to install it before bid,Thank you for your kind understanding!
TM062JYSC01 FAQ:
Q: Can you give me a discount if I need a large quantity of TM062JYSC01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TM062JYSC01 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of TM062JYSC01 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of TM062JYSC01 ?
A: Of course!sample order is welcome !
TM062JYSC01 Shipping and Package :
