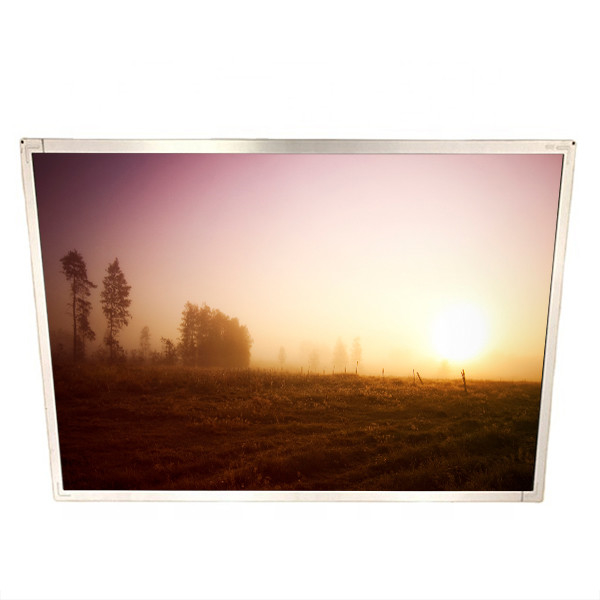

B116XAB01.2 HW0A 11.6 inch LCD Screen 1366*768 lcd laptop panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XAB01.2 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B116XAB01.2 HW0A | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, Assembly | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Active Area: | 256.125(W)×144(H) Mm | Outline (mm): | 287.7(W)×185.6(H) ×4.2(D) Mm |
| Touch Screen: | On-Cell Touch, I²C | Application: | Laptop |
| Support Color: | 262K 50% NTSC | Light Source: | WLED , 15K Hours , With LED Driver |
| Highlight: | FPC AUO LCD Screen,A035QN05 V2 Printer LCD Screen,QVGA Printer LCD Screen |
||
Product Description
B116XAB01.2 HW0A 11.6 inch LCD Screen 1366*768 lcd laptop panel
B116XAB01.2 HW0A Product details :
| Brand | AUO |
| Model P/N | B116XAB01.2 HW0A |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 287.7(W)×185.6(H) ×4.2(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (7H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Shape Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, I²C |
| Interface Type | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
B116XAB01.2 HW0A About Our:
Our shop has been engaged in physical store wholesale and online retail wholesale in the LCD screen industry for 12 years.
There are many models to choose from and will be uploaded one after another. If you need any screen, you can leave me a message.
B116XAB01.2 HW0A Note:
Please disassemble the machine before placing an order, and send us the correct screen picture for confirmation, so as to avoid sending the wrong goods.
B116XAB01.2 HW0A Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
B116XAB01.2 HW0A About Delivery:
USA/UK/Australia: Approximately 7-14 business days for delivery.
Canada: Expected delivery within 7-25 working days.
France/Spain/Germany: Delivery may take approximately 7-20 working days.
Eastern Europe: The maximum delivery time is 16-30 working days.
Italy/Brazil/South America: Delivery may take 30-50 working days.
For expedited shipping, DHL Express can be used, usually delivering within 3-6 business days.
Please note that these delivery times are approximate and may vary due to factors such as customs clearance and local postal service efficiency.
B116XAB01.2 HW0A Return and Warranty:
1.All the goods are inspected 2 times before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you much contact us within 24 hours of the receipt of your purchase.
2.All the items has 6 months warranty, If there has no man-made problem, we will replace for you freely. We own the best after-sale service. If any problems happen, we will do our best to solve the problem for customers.
3.All return items must be in its original conditions, including box and accessories. Men-made defects are not guaranteed, such as broken, scratched and so on.
4.For any items, please send by EMS or your local post when you send back.
B116XAB01.2 HW0A FAQ:
Q: Can You declare my order of B116XAB01.2 HW0A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of B116XAB01.2 HW0A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B116XAB01.2 HW0A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods B116XAB01.2 HW0A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
B116XAB01.2 HW0A Contact us:
If you have any questions or concerns, please feel free to contact us at any time. We are committed to providing sincere service to our customers. Our service hours follow Beijing time:
On weekdays:
Morning: 8:00 AM to 12:00 PM
Afternoon: 1:30 pm to 6:10 pm
In addition, we provide 24-hour customer service to help you solve problems. If you need help, please feel free to contact us at any time.
B116XAB01.2 HW0A Shipping and Package :
