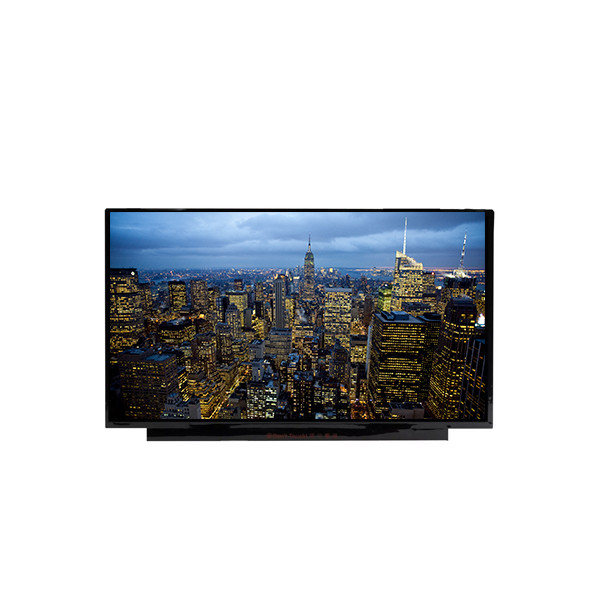

12.5 Inch TFT LCD Display NV125QUM-N81 Slim Laptop LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV125QUM-N81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NV125QUM-N81 | Diagonal Size: | 12.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 3840(RGB)×2160, UHD 352PPI |
| Active Area: | 276.48(W)×155.52(H) Mm | Outline (mm): | 282.08×168.89×4.6 (H×V×D)mm |
| Number Of: | 16.7M 100%Adobe RGB | Application: | Laptop |
| Refresh Rate: | 60Hz | Signal Type: | EDP (4 Lanes), EDP1.3 , HBR2 (5.4G/lane) , Connector40 Pins |
| Highlight: | 320x240 Industrial LCD Panel Display,A035QN05 V1 Industrial LCD Panel Display,50 Pin TFT LCD Display |
||
Product Description
12.5 Inch TFT LCD Display NV125QUM-N81 Slim Laptop LCD Panel Display
NV125QUM-N81 Product details :
| Brand | BOE |
| Model P/N | NV125QUM-N81 |
| Diagonal Size | 12.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 352PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 276.48(W)×155.52(H) mm |
| Bezel Opening | - |
| Outline (mm) | 282.08×168.89×4.6 (H×V×D)mm |
| Treatment | Antiglare |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 35 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | HADS, Normally Black, Transmissive |
| Color Depth | 16.7M 100%Adobe RGB |
| Backlight | 8S8PWLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes), eDP1.3 , HBR2 (5.4G/lane) , Connector40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
NV125QUM-N81 About Our:
Our shop has been engaged in physical store wholesale and online retail wholesale in the LCD screen industry for 12 years.
There are many models to choose from and will be uploaded one after another. If you need any screen, you can leave me a message.
NV125QUM-N81 Removal and Assembly Precautions:
When it comes to removing or assembling the screen of your laptop, it's important to take some precautions to avoid damaging your device. Firstly, ensure that the laptop battery is removed and that the laptop is not charged. This step is crucial to prevent any electrical charges from causing harm to your laptop during the process.
When removing or assembling the screen, be sure to exercise caution and handle the components with care. Screens are delicate and can be easily damaged if mishandled, so it's important to take your time and be gentle. This will not only prevent damage but also ensure that the screen is properly connected and secured to the device.
Overall, screen removal and assembly can be a tricky process, but with the right precautions and care, you can successfully complete the task without harming your laptop. Remember to stay positive and confident throughout the process, and don't hesitate to seek professional help if needed.
NV125QUM-N81 Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
NV125QUM-N81 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
NV125QUM-N81 Return and Warranty:
1.All the goods are inspected 2 times before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you much contact us within 24 hours of the receipt of your purchase.
2.All the items has 6 months warranty, If there has no man-made problem, we will replace for you freely. We own the best after-sale service. If any problems happen, we will do our best to solve the problem for customers.
3.All return items must be in its original conditions, including box and accessories. Men-made defects are not guaranteed, such as broken, scratched and so on.
4.For any items, please send by EMS or your local post when you send back.
NV125QUM-N81 FAQ:
Q: Can you tested the NV125QUM-N81 before shipping ?
A: Of course , our lcd panel NV125QUM-N81 was Strictly tested before shipping.
Q: How to order NV125QUM-N81 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel NV125QUM-N81 received can't work ?
A:NV125QUM-N81 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
NV125QUM-N81 Feedback:
1, once you receive your project, please feedback to us, it will tell us that you have received your goods.
2, your satisfaction is the most important thing for us.If you have questions or problems about your transaction, please contact us before leaving any type of feedback.Reasonable, give us a chance to correct within a reasonable period of
time, regardless of your concern.Negative feedback can't solve anything.
3, please give us a positive feedback after you receive your order, we will soon give you a positive feedback.
4, we are committed to our customers to provide the best customer service, building strong relationships with our customers, so please buy confidence.
NV125QUM-N81 Shipping and Package :
