15.6 Inch Slim 30PIN FHD IPS Laptop Screen LM156LFAL02 For Lenovo ThinkPad
Product Details:
| Place of Origin: | China |
| Brand Name: | PANDA |
| Model Number: | LM156LFAL02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM156LFAL02 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 141PPI |
| Active Area: | 344.16(W)×193.59(H) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Designed For: | Laptop |
| Highlight: | Slim FHD IPS Laptop Screen,IPS Laptop Screen LM156LFAL02 |
||
Product Description

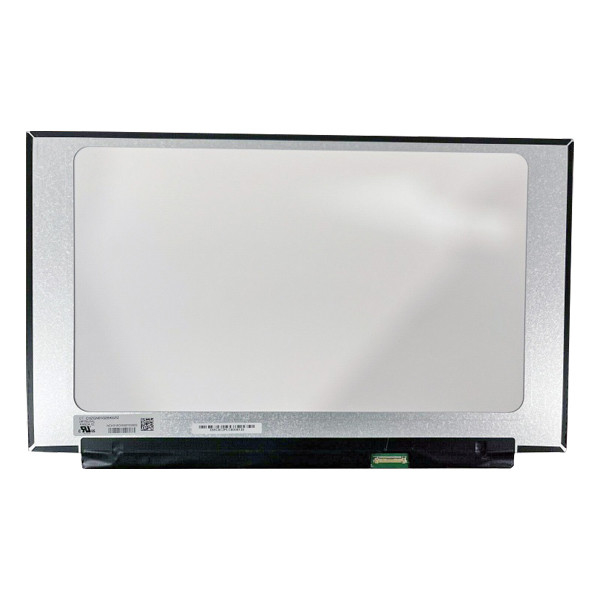

LM156LFAL02 for Lenovo ThinkPad 15.6 inch SLIM 30PIN FHD IPS LAPTOP SCREEN
LM156LFAL02 Product details :
| PANDA LCD Screen LM156LFAL02 | |
| Brand | PANDA |
| Model | LM156LFAL02 |
| Diagonal Size | 15.6 inch |
| Type | Oxide TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(H)×193.59(V) mm |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Tf) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 262K |
| Light Source | WLED |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM156LFAL02 for Lenovo ThinkPad 15.6 inch SLIM 30PIN FHD IPS LAPTOP SCREEN | |
LM156LFAL02 Note :
The price, freight and handling charges we require on the platform do not include any duties or taxes, and the buyer shall be responsible for the taxes or duties it purchases!
1.After placing the order, please carefully confirm your address and remember to write your full name on the trading platform, which is very important for the successful receipt of the package.
2.Your package will shipping out within 1-2 Workingdays after we getting your payment, if orders is made on holiday,it will be shipped out on next working day!
3.Test the display and touch 's function before shipping. 3 months warranty provided against quality problem.
4.If you're not sure what model you need to buy,please contact our company and we will reply you as soon as possible! Please Don't leave us low star feedback before contacting us , we always try our best to provide satisfied solution for our customer.
5.Please contact us if you don’t receive the products in time. Besides, we will check the package with the logistic company that they whether deliver it to you or not
LM156LFAL02 PAYMENT:
After you cancelled the order, money will back to your account within 1-15 business days
LM156LFAL02 Shipping and Package :
LM156LFAL02 SHIPPING:
Please confirm your address before payment.
We will send the items within 24 hours once your payment is completed.(Holidays may be extended)
LM156LFAL02 Warranty:
We promise1 YEAR WARRANTYfor all brandnew product. If there is any quality problem, the buyer can request a replacement within 7 days, but buyer should send the product back to us firstly, we will pay for the return shipping cost.
LM156LFAL02 FAQ:
Q: Do you accept the LM156LFAL02 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you test the lcd panel LM156LFAL02 before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long will I receive my goods of lcd LM156LFAL02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: What happen if I received the lcd panel LM156LFAL02 doen't work ?
A: Hi , Dear , our item LM156LFAL02 was tested ok before shipping , Don't worry .
