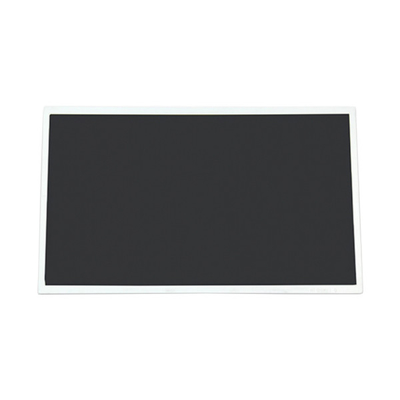

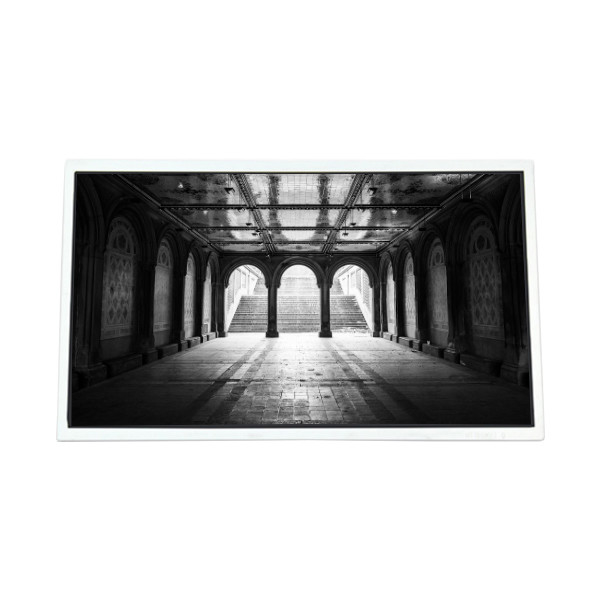

27.0 Inch LCD Module 1920*1080 MV270FHB-NF0 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV270FHB-NF0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | MV270FHB-NF0 | Diagonal Size: | 27.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 81PPI | Active Area: | 596.736(W)×335.664(H) Mm |
| Outline Dim.: | 608.536(H)×349.964(V) Mm | Treatment: | Antiglare (Haze 25%), Hard Coating (3H) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Used For: | Desktop Monitor、Gaming |
| Support Color: | 16.7M 99%sRGB | Light Source: | No B/L |
| Highlight: | 2.8 Inch Kyocera LCD Module,Meters Kyocera LCD Module,F-55472GNFJ-SLW-AAN |
||
Product Description
27.0 Inch LCD Module 1920*1080 MV270FHB-NF0 LCD Display Panel
MV270FHB-NF0 Product details :
| Brand | BOE |
| Model P/N | MV270FHB-NF0 |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 81PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.736(W)×335.664(H) mm |
| Bezel Opening | - |
| Outline Dim. | 608.536(H)×349.964(V) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 5 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 5.7% (Typ.)(with Polarizer) |
| Support Color | 16.7M 99%sRGB |
| Light Source | No B/L |
| Weight | TBD |
| Designed For | Desktop Monitor,Gaming |
| Frame Rate | 144Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 6 source chips |
| Interface Type | LVDS (4 ch, 8-bit), 92 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
MV270FHB-NF0 About Product:
1: Please read the product information carefully to avoid buying the wrong product. If you are not sure if the product is right for you, please feel free to contact us. We have professional engineers to help you. We will ask you for pictures and some product information, please reply in time, this is very important.
2: Some products, due to different production time, different production plants, different sales areas. Some coding and details may have some differences. Please don't worry, this is a normal phenomenon. We guarantee that the products are the same.
MV270FHB-NF0 About Test:
We guarantee that all products are strictly tested before shipment.We will keep the test evidence.
MV270FHB-NF0 Shipping and Package :
MV270FHB-NF0 Shipping Detail:
1:Please confirm your ADDRESS carefully once you make the order.
We will send the products to you at once after the payment is received.
2:Items are shipped from China using airmail; reach most of the coun-tries within 15 - 30 business days.
3:Please contact us if you don' t receive the products in 45 days.And please give us 3 working days for checking the undelivered package and the reason. If it is our problem, we will refund the money to you
4:We could not ship to African countries except South Africa by air-mail. So if African customers want to buy these products, please con-tact us about the shipping problem in advance.
MV270FHB-NF0 Warranty:
We promise1 YEAR WARRANTY for all brand new product. If there is any quality problem, the buyer can request a replacement within 7 days, but buyer should send the product back to us firstly, we will pay for the return shipping cost.
MV270FHB-NF0 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of MV270FHB-NF0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of MV270FHB-NF0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of MV270FHB-NF0 ?
A: Of course!If you make a large order, we will give you a discount.
