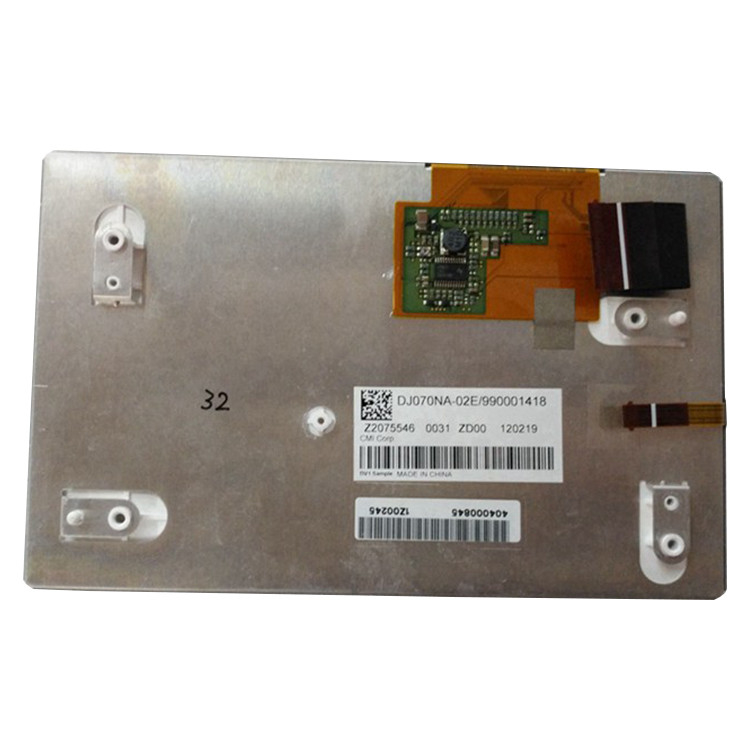

7.0 Inch LCD Display Panel 4 Wire Resistive Touch DD070NA-02E For Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | DD070NA-02E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | DD070NA-02E | Diagonal Size: | 7.0" |
|---|---|---|---|
| Active Area: | 152.4(W)×91.44(H) Mm | Bezel Opening: | 154.4(W)×94.34(H) Mm |
| Outline Dim.: | 169.96(H)×106.64(V)×32.1(D) Mm | Touch Panel: | 4-wire Resistive Touch |
| Weight: | 232±23g | Designed For: | Automotive Display |
| High Light: | LCD Display Panel DD070NA-02E,Resistive Touch LCD Display Panel,12 o'clock LCD Touch Panel Display |
||
Product Description
7.0 inch Automotive Display lcd 800(RGB)×480 lcd display panel DD070NA-02E screen
DD070NA-02E Product details :
| Chimei Innolux LCD SCREEN DD070NA-02E | |
| Manufacturer | Chimei Innolux |
| Model Name | DD070NA-02E |
| Screen Size | 7.0 inch |
| Screen Type | a-Si TFT-LCD, LCM |
| Pixel Number | 800(RGB)×480, WVGA 133PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 152.4(W)×91.44(H) mm |
| Outline(mm) | 154.4(W)×94.34(H) mm |
| Bezel Area(mm) | 169.96(W)×106.64(H)×32.1(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1600:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 74% NTSC |
| Lamp Type | WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | 4-wire Resistive Touch |
| Panel Weight | 232±23g |
| Application | Automotive Display |
| Interface Type | CMOS (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/3.3/10/19/-6.8V (Typ.)(VCC/VDDG/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| 7.0 inch Automotive Display lcd 800(RGB)×480 lcd display panel DD070NA-02E screen | |
DD070NA-02E Attention:
1.Please confirm your ADDRESS carefully once you make the order, and remember to write your FULL NAME on Alibaba which is important for success of receiving your package.
2.Your package will shipping out within 1-3 Working days after we getting your payment, if orders is made on holiday,it will be shipped out on next working day!
3.Test the display and touch 's function before shipping. 3 months warranty provided against quality problem.
4.If you're not sure what model you need to buy,please contact our company and we will reply you as soon as possible! Please Don't leave us low star feedback before contacting us , we always try our best to provide satisfied solution for our customer.
5.Please contact us if you don’t receive the products in time. Besides, we will check the package with the logistic company that they whether deliver it to you or not
DD070NA-02E Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
DD070NA-02E Shipping and Package :
DD070NA-02E About the transportation:
Our Courier has Alibaba Standard Shipping, time not sure, about 15 to 30 days. (the time is not very urgent use, transport time is a little long, transportation cost cheaper)
DHL about 3 to 7 days or so, UPS/federal IP is about 7 to 10 days. This is just a reference, the specific time according to the express company limited. (shipping time is very short, but transport costs is high, the urgent need to use)
DD070NA-02E Warranty:
We promise1 YEAR WARRANTYfor all brandnew product. If there is any quality problem, the buyer can request a replacement within 7 days, but buyer should send the product back to us firstly, we will pay for the return shipping cost.
DD070NA-02E FAQ:
Q: Can you give me a discount if I need a large quantity of DD070NA-02E ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: What's the different between original touch panel and compatible touch screen ?
A : Don't worry it . The compatible touch panel has the same function as original one .
Q: How long will I receive my goods of Chimei Innolux DD070NA-02E ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
