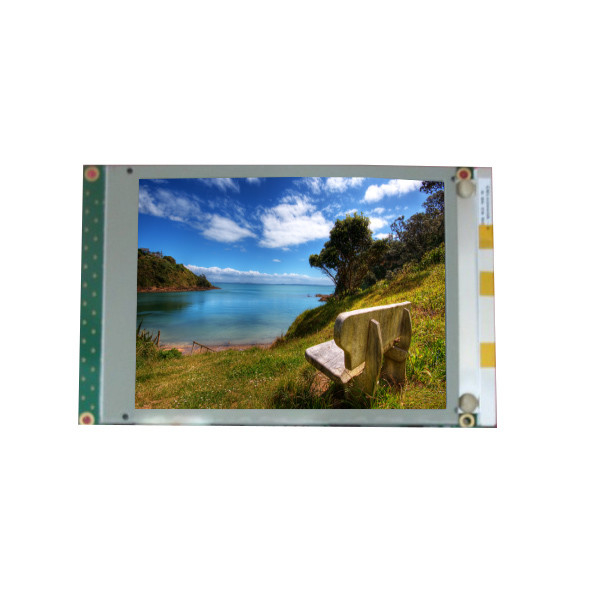

Industrial Monochrome LCD Screen DMF-50840NF-FW 5.7 Inch STN LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | OPTREX |
| Model Number: | DMF-50840NF-FW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | DMF-50840NF-FW | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 120.0(W)×90.0(H) Mm | Outline Dim.: | 167.1(H)×109(V)×11(D) Mm |
| Weight: | 230g (Max.) | Designed For: | Industrial |
| High Light: | 5.7 Inch Monochrome LCD Screen,DMF-50840NF-FW STN LCD Module,5.7 Inch STN LCD Module |
||
Product Description
Original in Stock LCD Screen DMF-50840NF-FW 5.7inch STN Lcd module
DMF-50840NF-FW Product details :
| OPTREX LCD SCREEN DMF-50840NF-FW | |
| Panel Brand | OPTREX |
| Panel Model | DMF-50840NF-FW |
| Panel Size | 5.7 inches |
| Panel Type | FSTN-LCD , LCM |
| Resolution | 320×240 QVGA 70PPI |
| Pixel Format | Rectangle |
| Display Area | 115.2(horizontal)×86.4(vertical) mm |
| Bezel Opening | 120.0(horizontal)×90.0(vertical) mm |
| Outline Size | 167.1 (horizontal) × 109 (vertical) × 11 (thickness) mm |
| Brightness | 50 cd/m² (Typ.) |
| Contrast Ratio | 15:1 (Typ.) (Transmission) |
| Viewing Angle | 40/50/30/40 (Typ.) (CR≥2) |
| Display Mode | STN, Black/White (Negative), Transmissive |
| Best View on | 6 o'clock |
| Response Time | 420/210 (Typ.)(Tr/Td) ms |
| Display Colors | Monochrome |
| Lamp Type | CCFL [1 pcs] , 25K hours, no driver |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 230g (Max.) |
| Designed For | Industrial |
| Signal Interface | 14 pins Parallel Data (4-bit) , FPC |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| Original in Stock LCD Screen DMF-50840NF-FW 5.7inch STN Lcd module | |
DMF-50840NF-FW Hello friends, before you order:
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen;
Usually, the LED panel we send will be a compatible model, which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.
All items are tested before shipment, excluding tape. If you need a specific model, please leave a message when ordering.
For all problems, please do not leave negative feedback or public disputes before contacting us, please send us a message through Alibaba, and we will immediately solve the problem for you.
Your satisfaction is our goal! Thank you.
DMF-50840NF-FW Shipping and Package :
DMF-50840NF-FW About the goods:
Receive delivery company products, please check whether the parcel in good face to face. If damaged packaging or product damage, please refuse and ask the photos to prove it. Photos are divided into two parts, divided into two parts. A customer himself as evidence, the other a Courier company as a third party. Then when we received the Courier company send us the pictures of damaged products, we will find out is responsible for the damage to the product of the case. No third party evidence we can't pay for
DMF-50840NF-FW Return:
· Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
· Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
DMF-50840NF-FW Other policies:
If you need a lot of quantity, please contact us, will give you a favorable price.
We are not responsible for all taxes and import duties
Due to the time difference, all emails will be reply within 24 hours. Thank you for your understanding!
DMF-50840NF-FW FAQ:
Q: Can you give me a discount if I need a large quantity of DMF-50840NF-FW ?
A:Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How to make payment for OPTREX DMF-50840NF-FW ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of lcd DMF-50840NF-FW at a very low value ?
A: Yes , we can . pls inform us before shipping .
