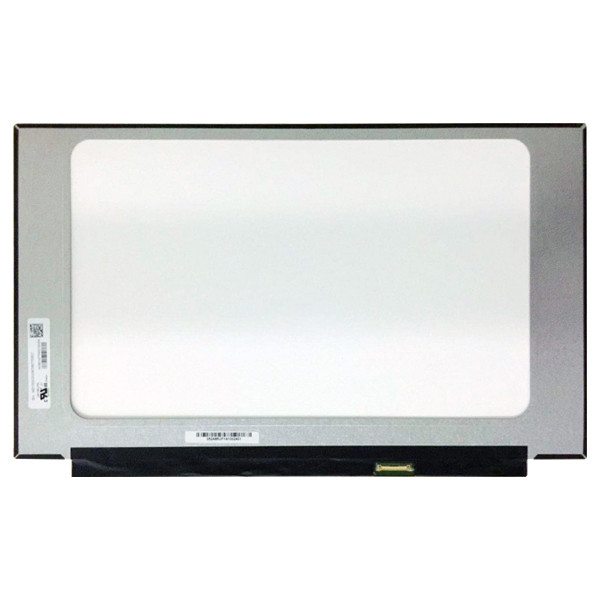

15.6 Inch Full HD Laptop LCD Panel LM156LF9L01 Slim Oxide TFT LCD / LCM IPS Display
Product Details:
| Place of Origin: | China |
| Brand Name: | PANDA |
| Model Number: | LM156LF9L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM156LF9L01 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Panel Type: | Oxide TFT-LCD, LCM |
| Active Area: | 344.16(W)×193.59(H) Mm | Outline Size: | 350.66(W)×216.25(H)×2.6(D) Mm |
| Shape Style: | Slim (PCBA Flat, T≤3.2mm) | Application: | Laptop |
| High Light: | Oxide TFT Laptop LCD Panel,LM156LF9L01 Laptop LCD Panel |
||
Product Description
15.6 inch ips display full hd laptop lcd panel LM156LF9L01
LM156LF9L01 Product details :
| PANDA LCD Screen LM156LF9L01 (NCP0028) | |
| Manufacturer | PANDA |
| Model Name | LM156LF9L01 (NCP0028) |
| Screen Size | 15.6 inch |
| Screen Type | LCM , Oxide TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 216.25 × 2.6 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Tf) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Color Depth | 262K 72% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 15.6 inch ips display full hd laptop lcd panel LM156LF9L01 | |
LM156LF9L01 Before placing orders:
To avoid the wrong order or buy wrong product, please double check your model and screen size and part number. If you are not sure the purpose compatibility, please send your original specific models (screen) model on the back of the screen and photos sent to us; Usually we will send the LED panel is compatible model, it may be related to your original screen model is not completely the same. But we can make sure it is suitable for the model
Note: product prototype number of links and compatible model random delivery. If you have any special requirements you need to specify the type, please inform us before order. Thank you very much.
LM156LF9L01 Product line:
Laptop lcd and led screen:from 4.5 inch to 18.4 inch
1.Size:8.9",10.1",10.2",11.1",11.6",12.1",13.1,13.3",14.0",14.1" ,15.0",15.4",15.6",16. 0",17.0",17.3",18.4"and so on.
2. Resolution:WSVGA,WXGA,WXGAHD,XGA,WXGA+,WXGA++
3. Backlight:LED,1CCFL,2CCFL
LM156LF9L01 Product detalis
15.6-inch HDnotebook screen resolution 1920X108030 pin EDPis suitable for Lenovo ASUS, Hongji, Dell and other notebooks 15.6 FHD IPS laptop display in the link. TN and IPS can be replaced with each other. You can choose a cheaper TN to buy. Select the model in the IPS advertisement. Buying TN usually sends models that are not in the link. Please note that
LM156LF9L01 Shipping and Package :
LM156LF9L01 Shipping Information:
We will ship out your items within 1-5 business days after the payment is cleared.
Some items we supply free shipping with HK/China post, if u need it urgent, pls contact me.
Standard shipping using international Airmail, Items ship from Hongkong and it takes 7-14 working days (2-3 weeks) to receive for most area.
If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)
LM156LF9L01 FAQ:
Q: If I place order now,when will you ship the goods of LM156LF9L01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of LM156LF9L01 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of LM156LF9L01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LM156LF9L01 ?
A: we will give you tracking number then you can trace your order from website.
