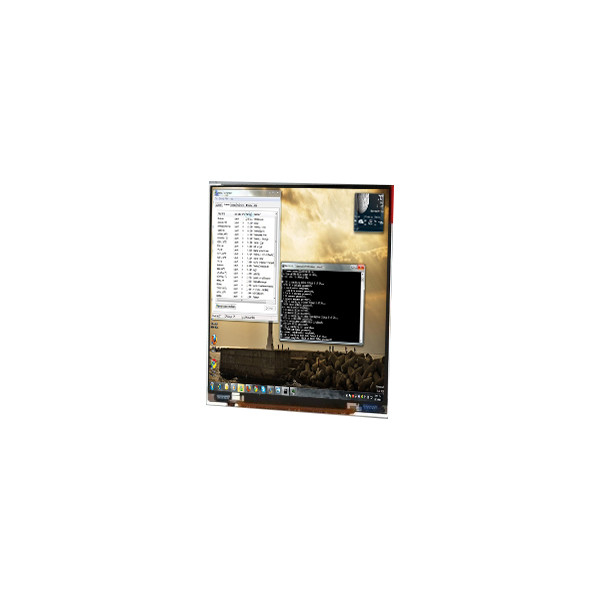

LPM055M508A LCD Screen 5.5 inch I For HMD VR AR
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPM055M508A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPM055M508A | Diagonal Size: | 5.5" |
|---|---|---|---|
| Resolution: | 2160(RGB)×1920×2 526PPI | Active Area: | 67.068(W)×122.202(H) Mm |
| Outline (mm): | 70.268×133.102 (H×V×D) | Luminance: | 120 Cd/m² (Typ.) |
| Contrast Ratio: | 700 : 1 (Typ.) (TM) | Response: | 4 (Typ.)(G To G) Ms |
| Used For: | HMD VR AR | Refresh Rate: | 75Hz |
| Highlight: | A035QN03 V0 AUO LCD Screen,VOIP Phone AUO LCD Screen |
||
Product Description
LPM055M508A LCD Screen 5.5 inch I For HMD VR AR
LPM055M508A Product details :
| Brand | JDI |
| Model P/N | LPM055M508A |
| Diagonal Size | 5.5" |
| Panel Type | LTPS TFT-LCD, Dual |
| Resolution | 2160(RGB)×1920×2 526PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.068(W)×122.202(H) mm |
| Bezel Opening | - |
| Outline (mm) | 70.268×133.102 (H×V×D) |
| Treatment | - |
| Luminance | 120 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 4 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 85%NTSC |
| Backlight | 5S4PWLED, No Driver |
| Mass | 33.8g |
| Used for | HMD VR AR |
| Refresh Rate | 75Hz |
| Touchscreen | Without |
| Signal Type | MIPI (2 ch, 4 data lanes), Connector60 pins |
| Voltage Supply | 1.8/5.7/-5.7V (Typ.)(IOVCC/VSP/VSN) |
| Max. Ratings | Storage Temp.: -30 ~ 60 °C Operating Temp.: -10 ~ 50 °C |
LPM055M508A Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
LPM055M508A Resolutions:
XGA, WXGA, WXGA HD, , WXGA+, WXGA++, WSVGA, WUXGA, WUXGA+, WUXGA++, Full-HD
LPM055M508A Backlight technologies:
LED, SLIM LED,1 CCFL, 2 CCFL
LPM055M508A Shipment Information:
We can ship to you by DHL / FedEX / TNT / UPS / EMS…
you can choose the shipping method you prefer.
The buyer is responsible for any tax or duty charged by their country.
LPM055M508A ESTIMATED DELIVERY TIME:
- We Would Ship Out your order within 24 hours
- Economy: 15-50 days
- Standard: 10-35 days
- Expedited: 4-7 days
LPM055M508A Refund&Replacement:
1. Please contact us within 7 days if you have any question after you receiving the items.
2.The returned items has to be in its original condition, specific reason for the return,
We will issue a return or replacement for your order after we received the returns.
3.The buyer is responsible for all the shipping cost incurred.
LPM055M508A FAQ:
Q: Can you give me a discount if I need a large quantity of LPM055M508A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LPM055M508A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of LPM055M508A ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
LPM055M508A Shipping and Package :
