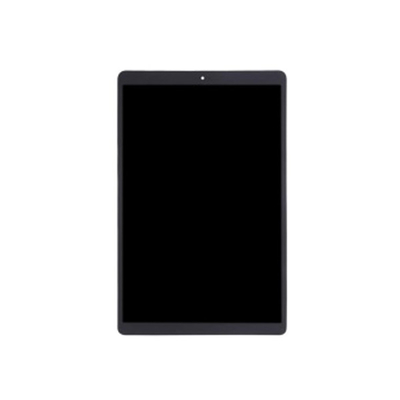

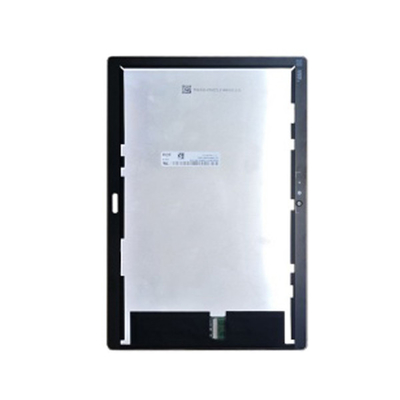

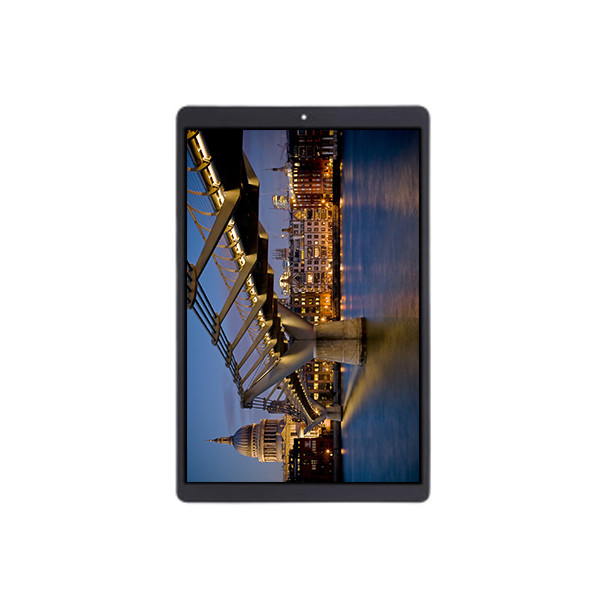

Name: TV101WUM-LL0 Original 10.1 inch tft lcd screen for Pad Tablet
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: TV101WUM-LL0
Availability: InStock

Brand Name:	BOE
Model Number:	TV101WUM-LL0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TV101WUM-LL0

Diagonal Size:

10.1"

Resolution:

1200(RGB)×1920, WUXGA 225PPI

Active Area:

135.36(W)×216.576(H) Mm

Outline (mm):

162.1(W)×237.14(H)×4.6(D) Mm

Support Color:

16.7M 99% SRGB

Panel Weight:

60Hz

Used For:

Pad & Tablet

Touch Panel:

In-Cell Touch, I²C

Interface Type:

MIPI (4 Data Lanes)45 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

TV101WUM-LL0 Original 10.1 inch tft lcd screen for Pad Tablet

TV101WUM-LL0 Product details :

Brand	BOE
Model P/N	TV101WUM-LL0
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1200(RGB)×1920, WUXGA 225PPI
Pixel Format	RGB Vertical Stripe
Active Area	135.36(W)×216.576(H) mm
Bezel Opening	-
Outline Dim.	162.1(W)×237.14(H)×4.6(D) mm
Luminance	380 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Support Color	16.7M 99% sRGB
Weight	190g (Typ.)
Frame Rate	60Hz
Treatment	Hard coating
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	30 (Typ.)(Tr+Td)
Operating Mode	-
Light Source	WLED [8S4P], W/O Driver
Designed For	Pad & Tablet
Touch Panel	In-Cell Touch, I²C
Interface Type	MIPI (4 data lanes)45 pins Connector
Power Supply	1.8/5.8/-5.8V (Typ.)(VDDI/AVDD/AVEE)
Environment	Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 70 °C

TV101WUM-LL0 Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

TV101WUM-LL0 Shipment Information:

We can ship to you by DHL / FedEX / TNT / UPS / EMS…

you can choose the shipping method you prefer.

The buyer is responsible for any tax or duty charged by their country.

TV101WUM-LL0 ESTIMATED DELIVERY TIME:

- We Would Ship Out your order within 24 hours

- Economy: 15-50 days

- Standard: 10-35 days

- Expedited: 4-7 days

TV101WUM-LL0 Refund&Replacement:

1. Please contact us within 7 days if you have any question after you receiving the items.

2.The returned items has to be in its original condition, specific reason for the return,

We will issue a return or replacement for your order after we received the returns.

3.The buyer is responsible for all the shipping cost incurred.

TV101WUM-LL0 FAQ:

Q: Can you give me a discount if I need a large quantity of TV101WUM-LL0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of TV101WUM-LL0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of TV101WUM-LL0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty .

TV101WUM-LL0 Shipping and Package :
