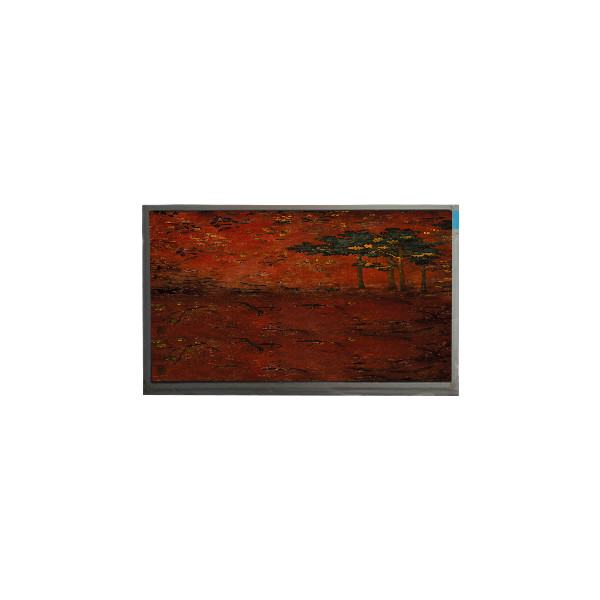

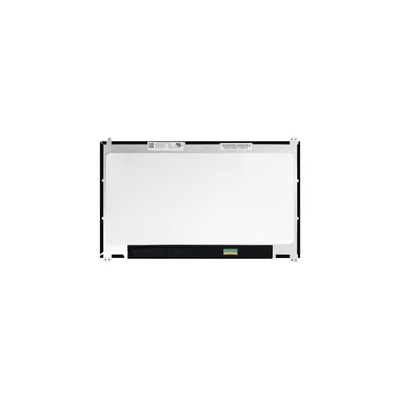

14.0 inch M140NWR6 R3 1366*768 LCE SCREEN for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M140NWR6 R3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M140NWR6 R3 | Screen Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 112PPI | Active Area(mm): | 309.399(W)×173.952(H) Mm |
| Outline(mm): | 320.9(W)×199.2(H)×5.25(D) | Luminance: | 220 (Typ.)(cd/m²) |
| Backlight: | WLED , 15K Hours , With LED Driver | Application: | Laptop |
| Refresh Rate: | 60Hz | Outline Shape: | Slim (PCBA Bent, T≤3.0mm) |
Product Description
14.0 inch M140NWR6 R3 1366*768 LCE SCREEN for Laptop
M140NWR6 R3 Product details :
| Brand | IVO |
| Model P/N | M140NWR6 R3 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | - |
| Outline(mm) | 320.9(W)×199.2(H)×5.25(D) |
| Luminance | 220 (Typ.)(cd/m²) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 45% NTSC |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 8 (Typ.)(Tr+Td) ms |
| Backlight | WLED , 15K hours , With LED Driver |
| Used for | Laptop |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane), eDP1.2, 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
M140NWR6 R3 Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
M140NWR6 R3 Important tips:
1.All devices be tested before shipping and 100% working well.
2.Please test before installation !!! and then install the machine after the test is complete.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
3.LCD is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4.If you did not talk to us, give a bad review, which means you give up all after-sales service (including return refund)
M140NWR6 R3 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
M140NWR6 R3 FAQ:
Q: Can you give me a discount if I need a large quantity of M140NWR6 R3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of M140NWR6 R3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of M140NWR6 R3 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
M140NWR6 R3 Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
