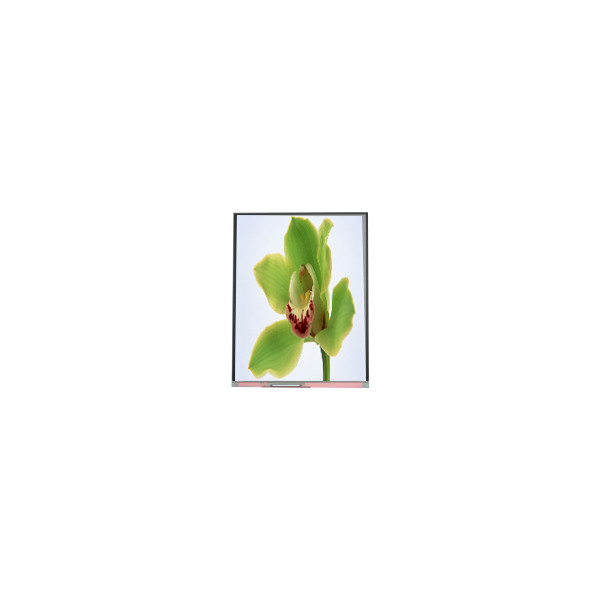

5.0 inch TFT LCD screen 480*854 C050SWYG-3
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | C050SWYG-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C050SWYG-3 | Screen Size: | 5.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×854, FWVGA 198PPI | Active Area(mm): | 61.56(W)×109.53(H) Mm |
| Outline Size: | 64.46(W)×117.4(H)×0.8(D) Mm | Surface: | Without Polarizer |
| Lamp Type: | No B/L | Application: | Mobile Phone、Handheld & PDA |
| Display Colors: | 16.7M 67%NTSC | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Product Description
5.0 inch TFT LCD screen 480*854 C050SWYG-3
C050SWYG-3 Product details :
| Brand | IVO |
| Model P/N | C050SWYG-3 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 480(RGB)×854, FWVGA 198PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 61.56(W)×109.53(H) mm |
| Bezel Opening | - |
| Outline Size | 64.46(W)×117.4(H)×0.8(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 4.8% (Typ.) |
| Display Colors | 16.7M 67%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Suggest HX8379-C, OTM8019A, ILI9806E |
| Panel Weight | TBD |
| Application | Mobile Phone,Handheld & PDA |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Original TFT-LCD Display C050SWYG-3 5.0 inch LCD Screen Price | |
C050SWYG-3 Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
C050SWYG-3 Important tips:
1.All devices be tested before shipping and 100% working well.
2.Please test before installation !!! and then install the machine after the test is complete.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
3.LCD is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4.If you did not talk to us, give a bad review, which means you give up all after-sales service (including return refund)
C050SWYG-3 Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
C050SWYG-3 FAQ:
Q: Do you accept sample orders of C050SWYG-3 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of C050SWYG-3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods C050SWYG-3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
C050SWYG-3 Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
