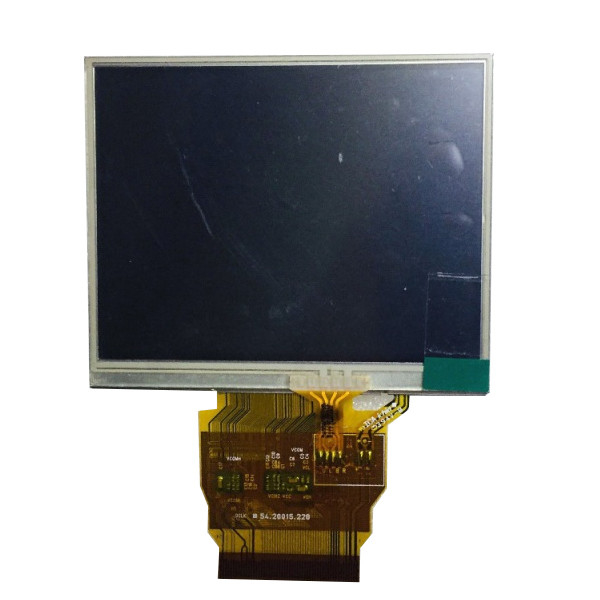

3.5inch screen Digital Video Camera Panel A035QN02 V4 Portable Navigation display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A035QN02 V4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A035QN02 V4 | Screen Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×240 [QVGA] 115PPI | Active Area(mm): | 70.08 × 52.56 Mm (H×V) |
| Bezel Opening: | 73.05(W)×55.55(H) Mm | Outline Size: | 76.9×63.9 ×4.27 Mm |
| Touch Screen: | 4-wire Resistive Touch Screen | Application: | Portable Portable Navigation VOIP Phone Digital Still Camera Digital Video CameraVOIP Phone Digital Still Camera Digital Video Camera |
Product Description
3.5inch screen Digital Video Camera Panel A035QN02 V4 Portable Navigation display
A035QN02 V4 Product details :
| Brand | AUO |
| Model Name | A035QN02 V4 |
| Screen size | 3.5 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 320(RGB)×240 [QVGA] 115PPI |
| Pixel Format | RGB triangle |
| Display size | 70.08(Horizontal)×52.56(Vertical) mm |
| Outline(mm) | 76.9(Horizontal)×63.9(Vertical) ×4.27(Thick) mm |
| Visual size | 73.1(Horizontal)×55.55(Vertical) mm |
| Surface | Hard coating (3H) |
| Brightness | 350 (Typ.) |
| Contrast | 300:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/50/55 (Typ.)(CR≥10) |
| responding | 10/15 (Typ.)(Tr/Td) ms |
| Number of | 262K, 60% NTSC |
| Backlight type | 6S1P WLED, 10K hours, no driver |
| Screen weight | 40.0g |
| Refresh rate | 60Hz |
| Used for | Portable Navigation VOIP Phone Digital Still Camera Digital Video Camera |
| Touch function | 4-wire resistive touch screen |
| signal system | Parallel RGB (1 ch, 6-bit) + SPI , 54 pins FPC |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 85 °C |
| 3.5inch screen Digital Video Camera Panel A035QN02 V4 Portable Navigation display | |
A035QN02 V4 Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
A035QN02 V4 Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
A035QN02 V4 FAQ:
Q: How to order AUO A035QN02 V4 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order A035QN02 V4 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: What happen if A035QN02 V4 I received can't work ?
A: AUO A035QN02 V4 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How long the warranty of 3.5 inch TFT-LCD A035QN02 V4 ?
A: 90 DAYS.
A035QN02 V4 Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
