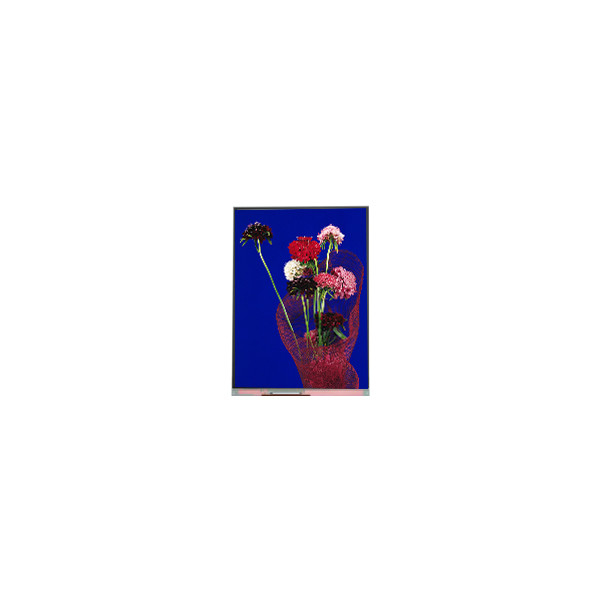

5.4 inch C054SWR6-0 540*1132 LCD SCREEN for phone
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | C054SWR6-0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C054SWR6-0 | Screen Size: | 5.4" |
|---|---|---|---|
| Resolution: | 540(RGB)×1132 232PPI | Active Area(mm): | 58.968(W)×123.614(H) Mm |
| Outline(mm): | 61.368 × 129.264× 0.8 (H×V×D) | Luminance: | 0 Cd/m² |
| Glass Thickness: | 0.40+0.40 Mm | Application: | Mobile Phone |
| Color Depth: | 16.7M 72%NTSC | Refresh Rate: | 60Hz |
Product Description
5.4 inch C054SWR6-0 540*1132 LCD SCREEN for phone
C054SWR6-0 Product details :
| Brand | IVO |
| Model P/N | C054SWR6-0 |
| Diagonal Size | 5.4" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 540(RGB)×1132 232PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 58.968(W)×123.614(H) mm |
| Bezel Opening | - |
| Outline(mm) | 61.368 × 129.264× 0.8 (H×V×D) |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 35 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 4.3% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 72%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Suggest COG ST7703 |
| Signal Type | MIPI (4 data lanes) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Cheap C054SWR6-0 5.4 inch Original LCD Display Screen | |
C054SWR6-0 Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
C054SWR6-0 Logistics:
The speed and time of logistics methods in different countries will be different, please choose according to your own needs, thank you.
China Post parcel; Hong Kong Post parcel: 30-60 days. EMS: 15-30 days. DHL, UPS, FEDEX, 4-20 days
C054SWR6-0 Note:
For fragile glass products, please open the package and check the package receipt. If it is damaged, please refuse to sign for it. If the receipt is successful, it will be the complete default product. If it is damaged in the next days, I will not be responsible for it. Thank you
C054SWR6-0 FAQ:
Q: Can I pay my order of C054SWR6-0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of C054SWR6-0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of C054SWR6-0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods C054SWR6-0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
C054SWR6-0 Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
