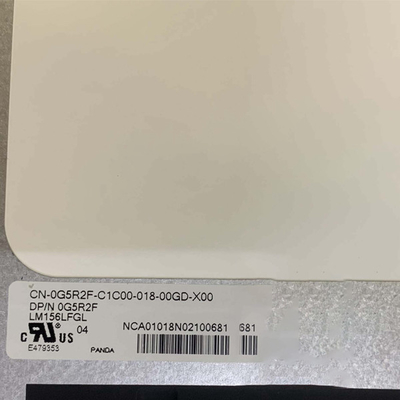

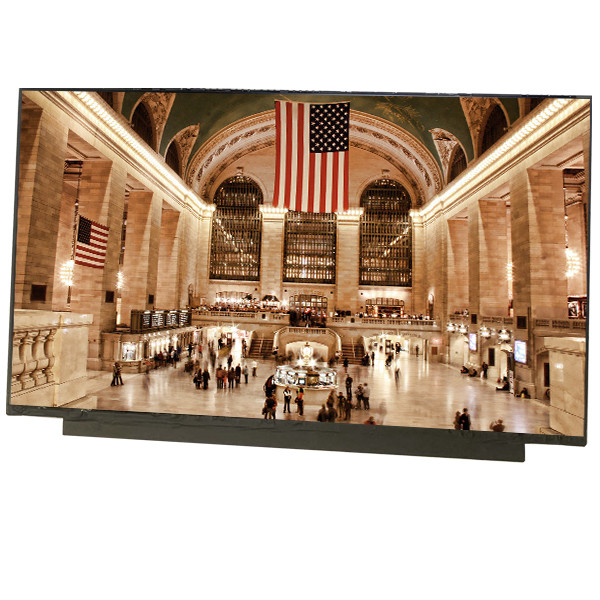

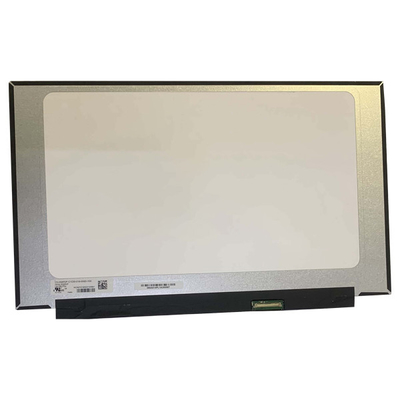

LM156LFGL04 15.6 inch slim 30pin FHD IPS laptop screen
Product Details:
| Place of Origin: | China |
| Brand Name: | PANDA |
| Model Number: | LM156LFGL04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM156LFGL04 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 350.66(W)×216.245(H)×3.2(D) Mm | Outline(mm): | 495.6 × 292.2 × 10.8 (H×V×D) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop / Gaming |
Product Description
LM156LFGL04 15.6 inch slim 30pin FHD IPS laptop screen
LM156LFGL04 Product details :
| PANDA LCD Screen LM156LFGL04 | |
| Panel Brand | PANDA |
| Panel Model | LM156LFGL04 |
| Panel Size | 15.6" |
| Panel Type | Oxide TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 350.66(W)×216.245(H)×3.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 120Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop / Gaming |

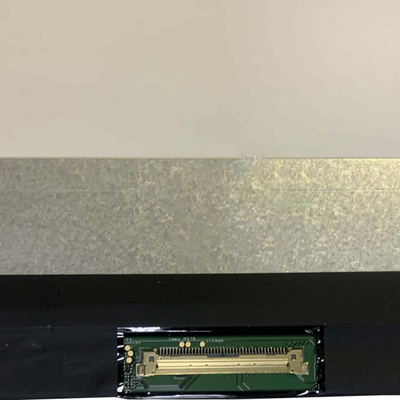

| Signal Interface | eDP (4 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LM156LFGL04 15.6 inch slim 30pin FHD IPS laptop screen | |
Because the screen is fragile, please must inspect the goods first, in the signing, if there is damage, you need to associate the responsible person, please be sure to check the goods in the signature, thank you!!!
LM156LFGL04 Payment Method:
1. We accept payment via Alipay Escrow and credit card Only
2. Payment must be cleared within 7 working days after the Auction is end3 You need offer home or mobile phone
3. We will refund to you if the item is unexpectedly out of stock
4. Buyer responses for (in case) all tax or VAT under any circumstances.
LM156LFGL04 Shipping and Package :
LM156LFGL04 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
LM156LFGL04 About the return:
1.Customers can be in within 90 days after receipt of the goods to replace the same product, when determine the defective. When the replacement of different products, customers are regarded as two independent trading, return and purchase
2.All without defects, do not need to order, error screen, screen return original goods cost 20% restocking fee will be charged. Return of the freight shall be borne by the buyers.
3.Return of the goods, please keep the original packing sound
4.If you have any questions, Please keep in touch with us
LM156LFGL04 FAQ:
Q: How long is the warranty of LM156LFGL04 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LM156LFGL04 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for LM156LFGL04 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of LM156LFGL04 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
