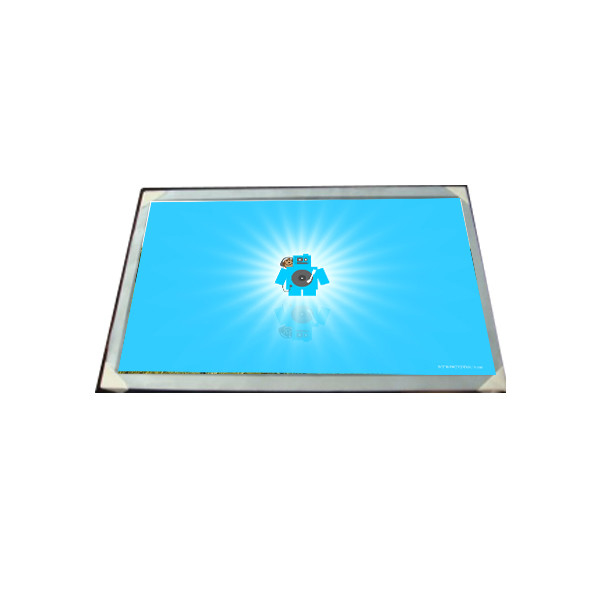

20.0 inch 1600*900 LM200WD3-TLC4 TFT LCD Panel LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM200WD3-TLC4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM200WD3-TLC4 | Diagonal Size: | 20.0" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 91PPI | Active Area: | 442.8(W)×249.075(H) Mm |
| Bezel Opening: | 446.8(W)×253.1(H) Mm | Outline Dim.: | 462.8 × 272 (H×V×D) |
| Viewing Angle: | 85/85/75/85 (Typ.)(CR≥10) | Designed For: | Desktop Monitor |
Product Description
20.0 inch 1600*900 LM200WD3-TLC4 TFT LCD Panel LCD Display Module
LM200WD3-TLC4 Product details :
| Brand | LG Display |
| Model P/N | LM200WD3-TLC4 |
| Diagonal Size | 20.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×900, HD+ 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 442.8(W)×249.075(H) mm |
| Bezel Opening | 446.8(W)×253.1(H) mm |
| Outline(mm) | 462.8 × 272 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Response | 1.1/3.9 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | 2 stringsWLED, 30K hours, No Driver |
| Mass | 1.53/1.61Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LM200WD3-TLC4 Attention:
1. Please confirm your machine model and screen model before purchasing, and provide the seller with all the data about your own LCD screen as much as possible, so that the seller can provide a suitable LCD screen. When the product picture is different from your actual screen, please consult the owner to confirm before shipping.
2. Since the LCD screens are all universal, the same machine is of different brands, if the customer has no special requirements, they are all made universal, and the screens are all original products. As long as the LCD screen specifications are the same, many models of LCD screens of different brands are common. And usually the LCD screen used in a notebook is not a designated model, please contact the customer service staff for specific detailed requirements, thank you for your cooperation!
3. There are many models of laptop LCD screens. For the same model of machine, such as Lenovo Y450, it can use LP140WH1, TLN140AT07, B140XW01, etc. These specifications and parameters are the same, and they can all be used. The difference is that the brands are different. We will communicate with you about the specific screen brand before purchasing. The received screen may be a bit different from the screen of your original laptop model, but the screen is compatible and can be used normally.
4. Before installing the screen, please turn off the laptop, disconnect the power supply and remove the battery. Do not install the screen while the laptop is on, otherwise your cable may be burned out.
LM200WD3-TLC4 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : LM200WD3-TLC4
•2-->Your laptop name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
LM200WD3-TLC4 Shipping and Package :
LM200WD3-TLC4 Delivery:
1.We can send out the items within 7 working days after payment confirmation.
2.The shipping way depends on the shipping cost which you choose, so please choose a proper shipping way according to your own situation.
3.If your place are located in a remote area, it may cost some extra charges, and we would let you know if the shipping cost is changed.
LM200WD3-TLC4 Shipment:
All items will be shipped within 48 hours after payment verification.
Free of charge: EMS DHL UPS, all tracking numbers of Singore, Hong Kong Post, China
1. For good customers, we declare $10 for each screen.
2. All mail usually takes 20-30 working days to deliver, but we can't guarantee it, sometimes more.
3. If you do not receive your goods in a limited time, you can check at www.17track.net, obtain logistics information, and send an email to us. During this period, we will check the shipment with our shipping company and reply to you as soon as possible.
4. China Post is the cheapest, and we strongly recommend choosing HK DHL because it is faster. DHL and UPS are the fastest (3-8 days), but may cause tariffs. If this happens, the customer is responsible for paying all tariffs, taxes and import fees.
5. All packages delivered by ordinary post (CN Post Hong Kong, SG Post) are limited to 2 kg. Therefore, if your package is overweight, we will arrange for your package to be delivered by 2 packages.
LM200WD3-TLC4 Other Policies:
1: We are not responsible for any custom duty or import tax.
2: All emails will be answered within 24 hours. If you don’t receive our reply, please kindly re-sent your email and we will reply to you asap.
LM200WD3-TLC4 FAQ:
Q: How do you ship my goods LM200WD3-TLC4 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LM200WD3-TLC4 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel LM200WD3-TLC4 at a very low value ?
A: Yes , we can . pls inform us before shipping .
