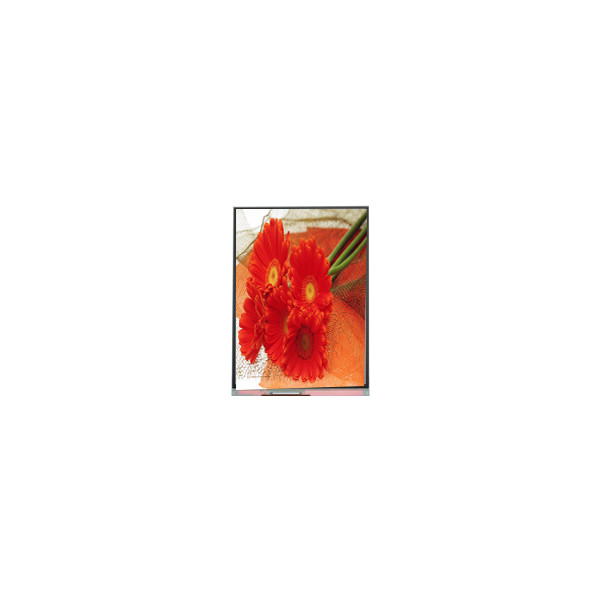

5.5 inch C055SWY9-0 LCD SCREEN for Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | C055SWY9-0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | C055SWY9-0 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Resolution: | 480(RGB)×960 197PPI | Active Area: | 61.8768(W)×123.754(H) Mm |
| Outline Size: | 63.8768(W)×129.354(H)×0.8(D) Mm | Brightness: | 350 (Typ.)0 Cd/m² |
| Number Of Colors: | 16.7M 60%NTSC | Transmissivity: | 4.2% (Typ.)(with Polarizer) |
| Display Mode: | TN, Normally White, Transmissive | ||
Product Description
5.5 inch C055SWY9-0 LCD SCREEN for Mobile Phone
C055SWY9-0 Product details :
| Brand | IVO |
| Model P/N | C055SWY9-0 |
| Diagonal Size | 5.5" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 480(RGB)×960 197PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 61.8768(W)×123.754(H) mm |
| Bezel Opening | - |
| Outline Size | 63.8768(W)×129.354(H)×0.8(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 30 (Typ.)(Tr+Td) |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 4.2% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 60%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Suggest ILI99806E, JD9161 |
| Panel Weight | 16.5/18.32g (Typ./Max.) |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| C055SWY9-0 5.5 inch 480*960 LCD Display Screen | |
C055SWY9-0 Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
C055SWY9-0 Payment:
We accept T/T (Bank Transfer), Western Union, Paypal,Credit card, Visa, Escrow
We offer flexible payment terms including COD(NET) terms to good customers.
C055SWY9-0 Shipment:
1.The goods will be shipped within 1-2 working days after payment is received.
2. The goods can be shipped by DHL, FedEx, UPS,EMS ,TNT, DPEX, ARAMEX, Registered post, Air or your shipping agent. Please choose the shipment method you prefer.
3. The buyer is responsibel for any tax or duty charged by their country.
C055SWY9-0 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
C055SWY9-0 FAQ:
Q: Can you test the lcd panel C055SWY9-0 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order C055SWY9-0 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order C055SWY9-0 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd C055SWY9-0 ?
A: 90 days .
C055SWY9-0 Shipping and Package :
