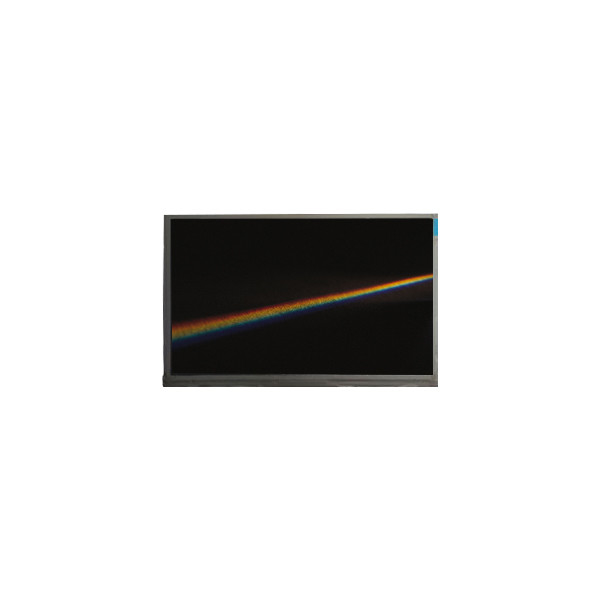

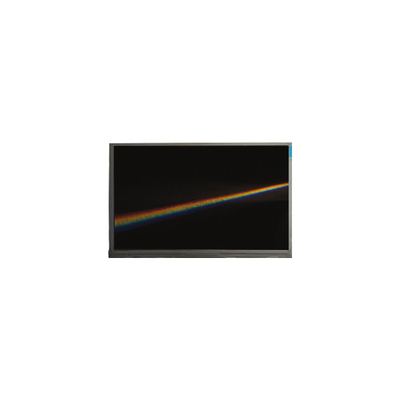

8.0 INCH M080AWP9 R1 800*480 LCD screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M080AWP9 R1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | M080AWP9 R1 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 115PPI | Active Area: | 175.2(W)×105.12(H) Mm |
| Outline Size: | 187.4(W)×118.05(H)×7.28(D) Mm | Brightness: | 750 Cd/m² (Typ.) |
| Number Of Colors: | 16.7M 70%NTSC | Light Source: | WLED [8S3P], 30K Hours, W/O Driver |
| Designed For: | Automotive Display | ||
Product Description
8.0 INCH M080AWP9 R1 800*480 LCD screen display
M080AWP9 R1 Product details :
| Brand | IVO |
| Model P/N | M080AWP9 R1 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 115PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 175.2(W)×105.12(H) mm |
| Bezel Opening | 177.4(W)×107.52(H) mm |
| Outline Dim. | 187.4(W)×118.05(H)×7.28(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 750 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 13 (Typ.)(Tr+Td) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 70%NTSC |
| Light Source | WLED [8S3P], 30K hours, W/O Driver |
| Weight | 200g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit), 60 pinsFPC |
| Power Supply | 3.3/22/10.7/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
M080AWP9 R1 Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
M080AWP9 R1 Product Information:
Price: The price depends on the quantity, quality and exchange rate etc. Please contact us for current price.
Payment method: Bank Transfer, Western Union, Moneygram, Paypal, online payment
Shipment method:DHL,UPS,FEDEX, EMS, ARAMEX, TNT, DPEX, POST, Air, Sea or your forwarder
M080AWP9 R1 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
M080AWP9 R1 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
M080AWP9 R1 FAQ:
Q: Can you give me a discount if I need a large quantity of M080AWP9 R1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of M080AWP9 R1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of M080AWP9 R1 ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
