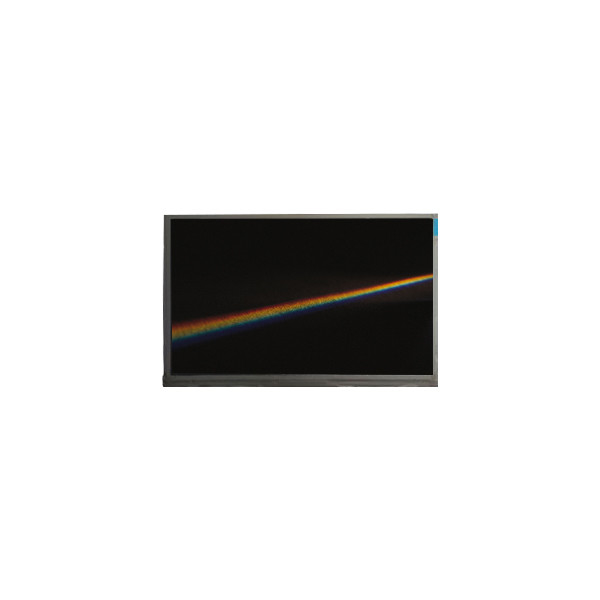

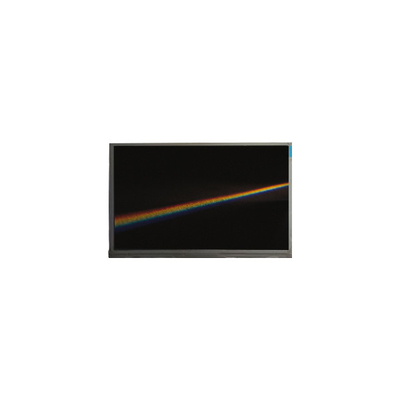

8.0 inch M080AWP9 R1 800*480 LCE SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | M080AWP9 R1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | M080AWP9 R1 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 115PPI | Display Area: | 175.2(W)×105.12(H) Mm |
| Outline Size: | 187.4(W)×118.05(H)×7.28(D) Mm | Brightness: | 750 Cd/m² (Typ.) |
| Number Of Colors: | 16.7M 70%NTSC | Light Source: | WLED [8S3P], 30K Hours, W/O Driver |
| Designed For: | Automotive Display | ||
Product Description
8.0 inch M080AWP9 R1 800*480 LCE SCREEN
M080AWP9 R1 Product details :
| Brand | IVO |
| Model P/N | M080AWP9 R1 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 115PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 175.2(W)×105.12(H) mm |
| Bezel Opening | 177.4(W)×107.52(H) mm |
| Outline Dim. | 187.4(W)×118.05(H)×7.28(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 750 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 13 (Typ.)(Tr+Td) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 70%NTSC |
| Light Source | WLED [8S3P], 30K hours, W/O Driver |
| Weight | 200g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit), 60 pinsFPC |
| Power Supply | 3.3/22/10.7/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
M080AWP9 R1 Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
M080AWP9 R1 Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
M080AWP9 R1 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
M080AWP9 R1 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
M080AWP9 R1 FAQ:
Q: Can I pay my order of M080AWP9 R1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of M080AWP9 R1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of M080AWP9 R1 ?
A: Of course!sample order is welcome !
Q: How can I trace my order of M080AWP9 R1 ?
A: we will give you tracking number then you can trace your order from website.
M080AWP9 R1 Shipping and Package :
M080AWP9 R1 Distributor:
We can also accept the special offers from distributor for bulk order, please contact with us by email.
