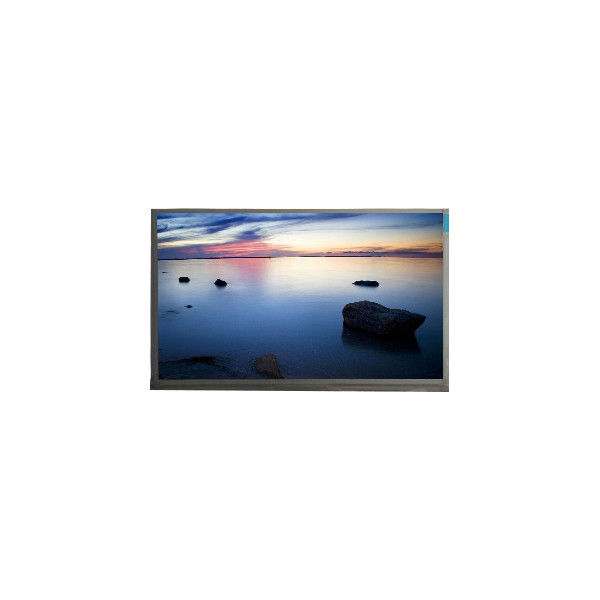

F055A25-601 5.5 inch 720*1440 LCE SCREEN display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F055A25-601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | F055A25-601 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Resolution: | 720(RGB)×1440 295PPI | Active Area: | 61.884(W)×123.768(H) Mm |
| Outline Size: | 63.884(W)×129.268(H) ×0.3(D) Mm | Brightness: | 0 Cd/m² |
| Number Of Colors: | 16.7M 70% NTSC | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| View Direction: | Symmetry | Response Time: | 25 (Typ.)(Tr+Td) |
Product Description
F055A25-601 5.5 inch 720*1440 LCE SCREEN display
F055A25-601 Product details :
| Brand | Innolux |
| Model P/N | F055A25-601 |
| Diagonal Size | 5.5" |
| Panel Type | a-Si TFT-LCD, CELL , Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1440 295PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 61.884(W)×123.768(H) mm |
| Bezel Opening | - |
| Outline Dim. | 63.884(W)×129.268(H) ×0.3(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Glass Depth | 0.15+0.15 mm |
| Transmissivity | 3.64% (Typ.) |
| Support Color | 16.7M 70% NTSC |
| Light Source | No B/L |
| Weight | TBD |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | Without |
| Driver IC | COGSuggest NT35521S, HX8394-F, OTM1287A, JD9364 |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 |
F055A25-601 Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
F055A25-601 Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
F055A25-601 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
F055A25-601 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
F055A25-601 FAQ:
Q: Can you give me a discount if I need a large quantity of F055A25-601 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of F055A25-601 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of F055A25-601 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
F055A25-601 Shipping and Package :
