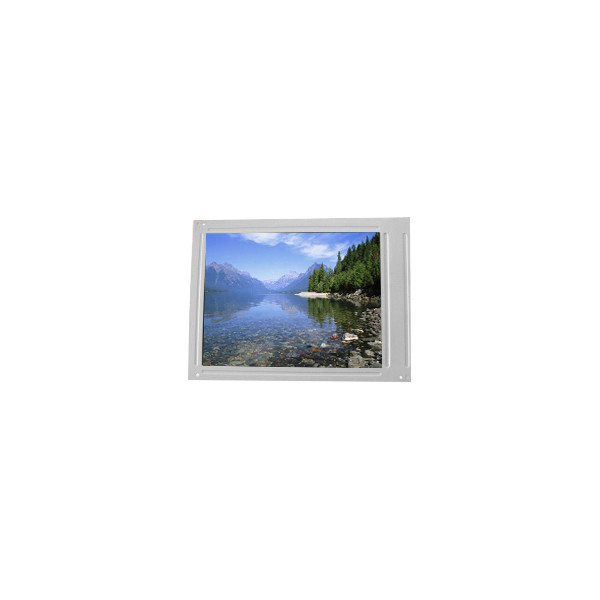

5.7 inch F057A12HD3Q-6T2 720*1440 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F057A12HD3Q-6T2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | F057A12HD3Q-6T2 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 720(RGB)×1440 282PPI | Active Area: | 64.8(W)×129.6(H) Mm |
| Outline Size: | 66.8(W)×135.1(H)×0.3(D) Mm | Brightness: | 0 Cd/m² |
| Touchscreen: | In-Cell Touch | Transmissivity: | 3.26% (Typ.)(with Polarizer) |
| Display Colors: | 16.7M 71%NTSC | Lamp Type: | No B/L |
Product Description
5.7 inch F057A12HD3Q-6T2 720*1440 LCD Screen
F057A12HD3Q-6T2 Product details :
| Brand | Innolux |
| Model P/N | F057A12HD3Q-6T2 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1440 282PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×129.6(H) mm |
| Bezel Opening | - |
| Outline Size | 66.8(W)×135.1(H)×0.3(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 35 (Typ.)(Tr+Tf) |
| Glass Depth | 0.15+0.15 mm |
| Transmissivity | 3.26% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 71%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | In-Cell Touch |
| Driver IC | COG Suggest NT36525, FT8006U, HX83102, TD4130 |
| Panel Weight | - |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
F057A12HD3Q-6T2 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
Thank you for purchasing this product, please leave a message for the specific model, we will send it randomly by default!
Welcome to our shop, customer first, we will serve you wholeheartedly!
•1-->The LCD model name in your hand, such as: LM185TT4A
•2-->Your notebook computer name, such as: brand,specific model
•3-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
F057A12HD3Q-6T2 Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
F057A12HD3Q-6T2 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
F057A12HD3Q-6T2 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
F057A12HD3Q-6T2 FAQ:
Q: Can you tested the F057A12HD3Q-6T2 before shipping ?
A: Of course , our lcd panel F057A12HD3Q-6T2 was Strictly tested before shipping.
Q: How to order F057A12HD3Q-6T2 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel F057A12HD3Q-6T2 received can't work ?
A:F057A12HD3Q-6T2 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
F057A12HD3Q-6T2 Shipping and Package :
