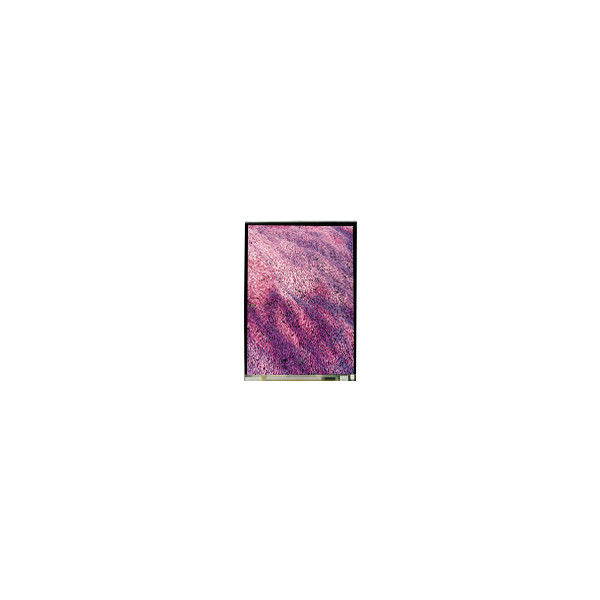

5.2 INCH LS052T3SX15 1080*1920 LCD SCREEN Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LS052T3SX15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LS052T3SX15 | Diagonal Size: | 5.2" |
|---|---|---|---|
| Resolution: | 1080(RGB)×1920, FHD 427PPI | Active Area: | 64.152(W)×114.048(H) Mm |
| Outline(mm): | 65.32(W)×119.91(H)×0.3(D) | Brightness: | 0 (cd/m²) |
| Backlight: | No B/L | Response: | 30 (Max.)(Tr+Td) Ms |
| Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 60 °C | Used For: | Mobile Phone |
Product Description
5.2 INCH LS052T3SX15 1080*1920 LCD SCREEN Display
LS052T3SX15 Product details :
| Brand | Sharp |
| Model P/N | LS052T3SX15 |
| Diagonal Size | 5.2" |
| Panel Type | CG-Silicon, CELL, Full Cell |
| Resolution | 1080(RGB)×1920, FHD 427PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.152(W)×114.048(H) mm |
| Bezel Opening | - |
| Outline(mm) | 65.32(W)×119.91(H)×0.3(D) |
| Luminance | 0 (cd/m²) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.15+0.15 mm |
| Color Depth | 16.7M 99% NTSC |
| Mass | 6.00g (Typ.) |
| Refresh Rate | 60Hz |
| Treatment | - |
| Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| Work Mode | New Mode2, Normally Black, Transmissive |
| Response | 30 (Max.)(Tr+Td) ms |
| Transmissivity | 3.52% (Typ.)(with Polarizer) |
| Backlight | No B/L |
| Used for | Mobile Phone |
| Touchscreen | Without |
| Driver IC list | SuggestCOGR69006 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 60 °C |
| Full Cell LCD Panel LS052T3SX15 5.2 inch FHD LCD Screen | |
LS052T3SX15 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
Thank you for purchasing this product, please leave a message for the specific model, we will send it randomly by default!
Welcome to our shop, customer first, we will serve you wholeheartedly!
•1-->The LCD model name in your hand, such as: LS052T3SX15
•2-->Your notebook computer name, such as: brand,specific model
•3-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
LS052T3SX15 Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
LS052T3SX15 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
LS052T3SX15 Return:
1.Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
2.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LS052T3SX15 FAQ:
Q: Can I pay my goods LS052T3SX15 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LS052T3SX15 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for LS052T3SX15 ?
A: Of course!sample order is welcome !
Q: How to make payment for LS052T3SX15 ?
A: We accept T/T , Paypal , western union .
LS052T3SX15 Shipping and Package :
