LCD Screen Display Panel
>

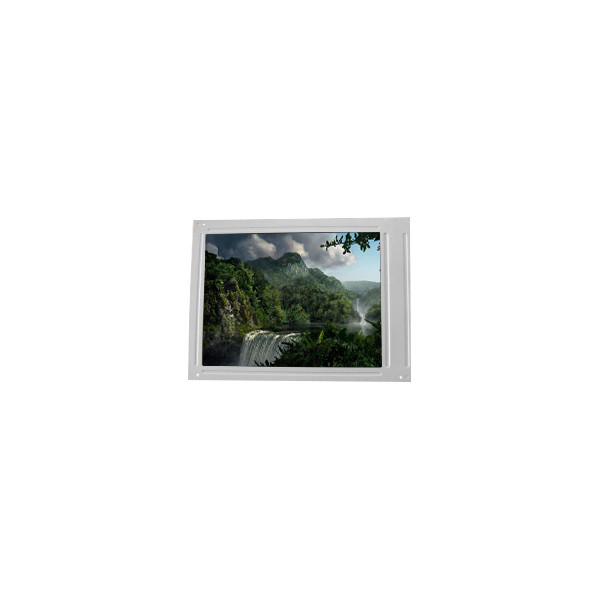

F055A25-603 5.5 inch 720*1440 LCE SCREEN for phone

F055A25-603 5.5 inch 720*1440 LCE SCREEN for phone

Brand Name: Innolux
Model Number: F055A25-603
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model P/N:
F055A25-603
Diagonal Size:
5.5"
Resolution:
720(RGB)×1440 295PPI
Active Area:
61.884(W)×123.768(H) Mm
Outline Size:
63.884(H)×129.268(V)×0.4(D) Mm
Brightness:
0 Cd/m²
Designed For:
Mobile Phone
Response Time:
25 (Typ.)(Tr+Td)
Viewing Angle:
80/80/80/80 (Typ.)(CR≥10)
Plate Thickness:
0.20+0.20 Mm
Supply Ability:
100000 Unit/Units per Month
Product Description

F055A25-603 5.5 inch 720*1440 LCE SCREEN for phone



F055A25-603 Product details :



Brand Innolux
Model P/N F055A25-603
Diagonal Size 5.5"
Panel Type a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution 720(RGB)×1440 295PPI
Pixel Format RGB Vertical Stripe
Active Area 61.884(W)×123.768(H) mm
Bezel Opening -
Outline Dim. 63.884(H)×129.268(V)×0.4(D) mm
Treatment Without Polarizer
Luminance 0 cd/m²
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Operating Mode AAS, Normally Black, Transmissive
Plate Thickness 0.20+0.20 mm
Transmittance 3.64% (Typ.)
Support Color 16.7M 70%NTSC
Light Source No B/L
Weight TBD
Designed For Mobile Phone
Frame Rate -
Touch Panel Without
D-IC Detail COG Suggest NT35521S, HX8394-F, OTM1287A, JD9364
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

F055A25-603 NOTE:


1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.



2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.



Thank you for purchasing this product, please leave a message for the specific model, we will send it randomly by default!

Welcome to our shop, customer first, we will serve you wholeheartedly!



•1-->The LCD model name in your hand, such as: LM185TT4A



•2-->Your notebook computer name, such as: brand,specific model



•3-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!



F055A25-603 Warranty & Maintenance:



We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.

Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.







F055A25-603 Shipping:



(Please note:business/working days:NOT including the weekend nor the holidays.)



1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.


For faster delivery,please contact us for express details.



2.Please make sure your shipping address is the right one.



3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.


F055A25-603 Return:



1.Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.



2.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.



F055A25-603 FAQ:



Q: Can You declare my order of F055A25-603 at a very low value ?

A: Yes , we can . pls inform us before shipping .



Q: How long is the warranty of F055A25-603 ?

A: 90days warranty .



Q: Can you give me a discount if I need a large quantity of F055A25-603 ?

A: Of course!If you make a large order, we will give you a discount.



Q: If I order F055A25-603 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.



F055A25-603 Shipping and Package :



F055A25-603 5.5 inch 720*1440 LCE SCREEN for phone 0
