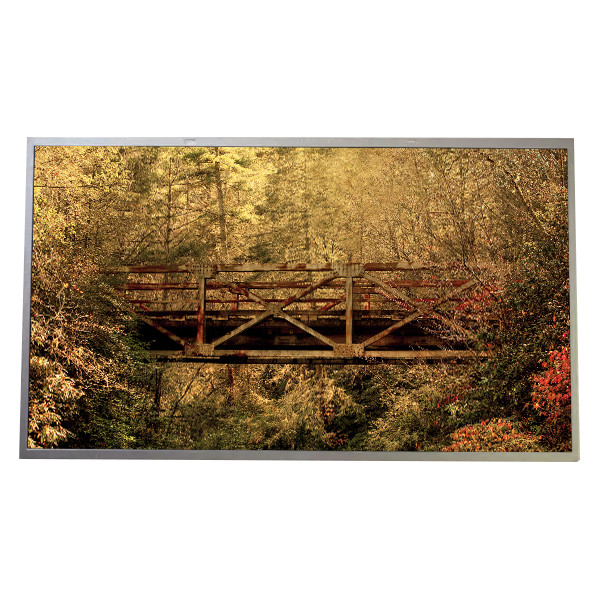

LM185TT4A PANDA 18.5 inch 1366(RGB)×768 Monitor lcd Screen module
Product Details:
| Place of Origin: | China |
| Brand Name: | PANDA |
| Model Number: | LM185TT4A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM185TT4A | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 84PPI | Active Area: | 409.8(W)×230.4(H) Mm |
| Bezel Opening: | 413.4(W)×234.0(H) Mm | Outline Size: | 430.37(W)×254.6(H)×11(D) Mm |
| Mass: | 1.22Kgs (Typ.) | Used For: | Laptop / Gaming |
Product Description
LM185TT4A PANDA 18.5 inch 1366(RGB)×768 Monitor lcd Screen module
LM185TT4A Product details :
| PANDA LCD Screen LM185TT4A | |
| Brand | PANDA |
| Model | LM185TT4A |
| Diagonal Size | 18.5 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1366(RGB)×768 [WXGA] 84PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 409.8(H)×230.4(V) mm |
| Outline Dim. | 430.37(H)×254.6(V)×11(D) mm |
| Bezel Area | 413.4(H)×234.0(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [10S4P] , 30K hours , W/O Driver |
| Weight | 1.22Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM185TT4A PANDA 18.5 inch 1366(RGB)×768 Monitor lcd Screen module | |
LM185TT4A NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
Thank you for purchasing this product, please leave a message for the specific model, we will send it randomly by default!
Welcome to our shop, customer first, we will serve you wholeheartedly!
•1-->The LCD model name in your hand, such as: LM185TT4A
•2-->Your notebook computer name, such as: brand,specific model
•3-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
LM185TT4A Buyer notice:
1,We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
LM185TT4A Shipping and Package :
LM185TT4A Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
LM185TT4A Return:
1.Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
2.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LM185TT4A FAQ:
Q: Do you accept sample orders of LM185TT4A ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LM185TT4A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods LM185TT4A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
