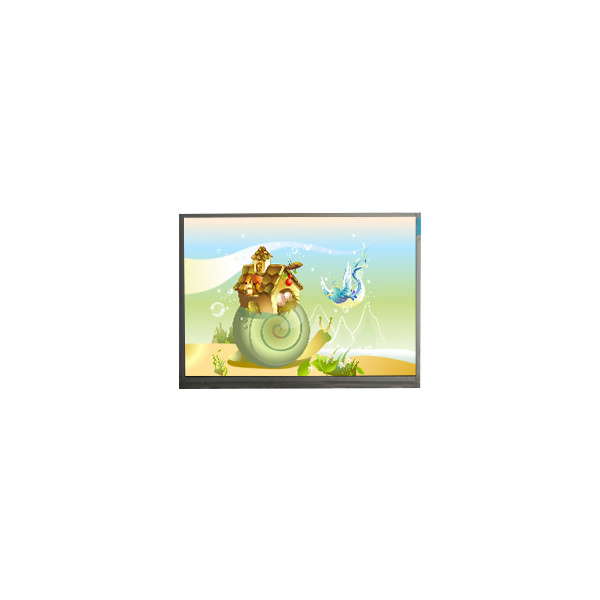

6.0 inch LCD Screen F060A21HD3Q-601 720*1440 lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F060A21HD3Q-601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | F060A21HD3Q-601 | Diagonal Size: | 6.0" |
|---|---|---|---|
| Resolution: | 720(RGB)×1440 268PPI | Designed For: | Mobile Phone |
| Active Area: | 68.04(W)×136.08(H) Mm | Outline (mm): | 70.04×141.68×0.3 (H×V×D) |
| Treatment: | Without Polarizer | Contrast Ratio: | 1500 : 1 (Typ.) (TM) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Color Depth: | 16.7M 70%NTSC |
Product Description
6.0 inch LCD Screen F060A21HD3Q-601 720*1440 lcd display
F060A21HD3Q-601 Product details :
| Brand | Innolux |
| Model P/N | F060A21HD3Q-601 |
| Diagonal Size | 6.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1440 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×136.08(H) mm |
| Bezel Opening | - |
| Outline (mm) | 70.04×141.68×0.3 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | A SS, Normally Black, Transmissive |
| Glass Thickness | 0.15+0.15 mm |
| Transmissivity | 4.27% (Typ.) |
| Color Depth | 16.7M 70%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Suggest COG HX8394-F, OTM1287A, ILI9881C, JD9364, JD9365D |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
F060A21HD3Q-601 Important tips:
1.All devices be tested before shipping and 100% working well.
2.Please test before installation !!! and then install the machine after the test is complete.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
3.LCD is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4.If you did not talk to us, give a bad review, which means you give up all after-sales service (including return refund)
F060A21HD3Q-601 Payment:
ESCROW, TT, Western Union or Paypal is available for you.
ALI will continue to update more payment methods.
When you submit your order you can choose the payment method that suits you.
F060A21HD3Q-601 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
F060A21HD3Q-601 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
F060A21HD3Q-601 Return policy :
If your order has been received and it is not what you ordered, or your item has a manufacturer defect, please contact us within 7 business
If it is proved to be a wrong item or have a manufacturer defect, please send back the item and we will send you a replacement for free.
Buyer needs to pay the return freight charge(negotiable on a case-by-case basis).Please contact me before you send the item back, correct shipping address should be confirmed. Please ensure the item will be returned in good condition with the original packaging.
F060A21HD3Q-601 FAQ:
Q: Can you test the lcd panel F060A21HD3Q-601 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order F060A21HD3Q-601 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order F060A21HD3Q-601 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd F060A21HD3Q-601 ?
A: 90 days .
F060A21HD3Q-601 Shipping and Package :
