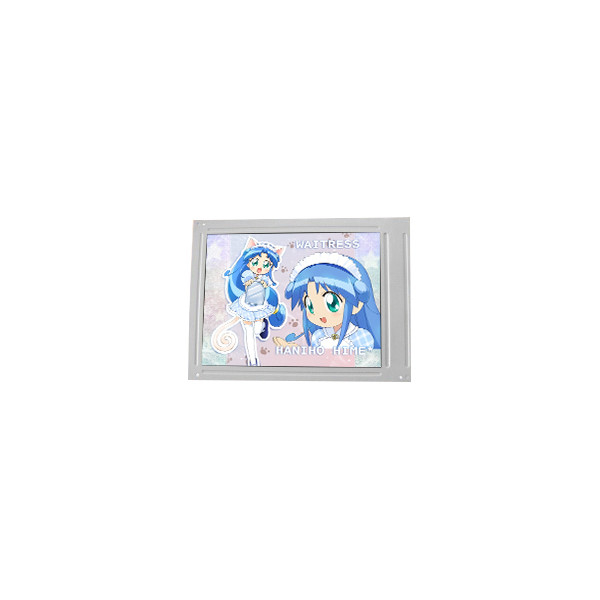

F057A12-6T2 5.7 inch 720*1440 LCD SCREEN display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F057A12-6T2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | F057A12-6T2 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 720(RGB)×1440 282PPI | Designed For: | Mobile Phone |
| Outline Dim.: | 66.8(H)×135.1(V)×0.3(D) Mm | Treatment: | Without Polarizer |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | Response Time: | 35 (Typ.)(Tr+Tf) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Touch Panel: | In-Cell Touch |
Product Description
F057A12-6T2 5.7 inch 720*1440 LCD SCREEN display
F057A12-6T2 Product details :
| Brand | Innolux |
| Model P/N | F057A12-6T2 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1440 282PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 64.8(W)×129.6(H) mm |
| Bezel Opening | - |
| Outline Dim. | 66.8(H)×135.1(V)×0.3(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Typ.)(Tr+Tf) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Plate Thickness | 0.15+0.15 mm |
| Transmittance | 3.26% (Typ.)(with Polarizer) |
| Support Color | 16.7M 71%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | In-Cell Touch |
| D-IC Detail | COG Suggest NT36525, FT8006U, HX83102, TD4130 |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
F057A12-6T2 Important tips:
1.All devices be tested before shipping and 100% working well.
2.Please test before installation !!! and then install the machine after the test is complete.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
3.LCD is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4.If you did not talk to us, give a bad review, which means you give up all after-sales service (including return refund)
F057A12-6T2 Payment:
ESCROW, TT, Western Union or Paypal is available for you.
ALI will continue to update more payment methods.
When you submit your order you can choose the payment method that suits you.
F057A12-6T2 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
F057A12-6T2 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
F057A12-6T2 Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
F057A12-6T2 FAQ:
Q: Can you give me a discount if I need a large quantity of F057A12-6T2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of F057A12-6T2 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of F057A12-6T2 ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
F057A12-6T2 Shipping and Package :
