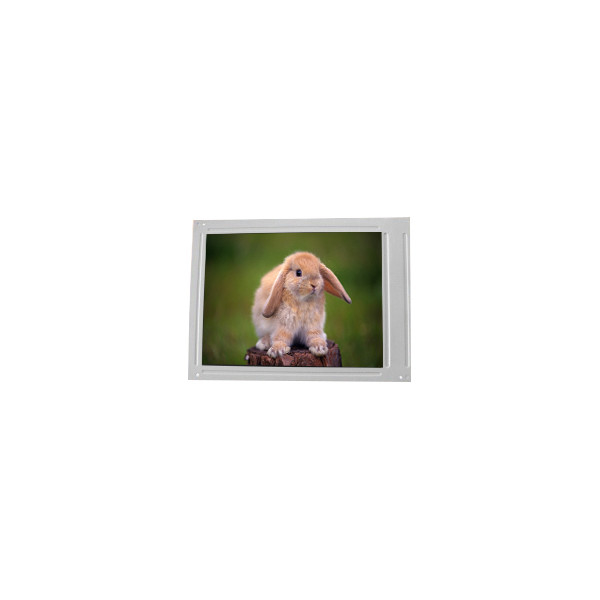

F055A25-604 5.5 inch 720*1440 lcd display screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F055A25-604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | F055A25-604 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Resolution: | 720(RGB)×1440 295PPI | Active Area: | 61.884(W)×123.768(H) Mm |
| Outline(mm): | 63.884(W)×129.268(H)×0.4(D) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Luminance: | 0 (cd/m²) | Designed For: | Mobile Phone |
| Work Mode: | AAS, Normally Black, Transmissive | Response: | 25 (Typ.)(Tr+Td) Ms |
Product Description
F055A25-604 5.5 inch 720*1440 lcd display screen panel
F055A25-604 Product details :
| Brand | Innolux |
| Model P/N | F055A25-604 |
| Diagonal Size | 5.5" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1440 295PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 61.884(W)×123.768(H) mm |
| Bezel Opening | - |
| Outline(mm) | 63.884(W)×129.268(H)×0.4(D) |
| Luminance | 0 (cd/m²) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.20+0.20 mm |
| Color Depth | 16.7M 70% NTSC |
| Mass | TBD |
| Refresh Rate | - |
| Treatment | Without Polarizer |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | AAS, Normally Black, Transmissive |
| Response | 25 (Typ.)(Tr+Td) ms |
| Transmissivity | 3.64% (Typ.) |
| Backlight | No B/L |
| Used for | Mobile Phone |
| Touchscreen | Without |
| Driver IC list | SuggestCOGNT35521S, HX8394-F, OTM1287A, JD9364 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
F055A25-604 Notice:
Prior to the order, please check and confirm whehter the screen size, resolution, backlight type, Interface type and location can be applied to your laptop, if you have no idea, please ask us freely.
Please give us your correct contact details so that you can receive the items as early as possible.
If you want us to wirte a low price to avoid the custom tax, please advise us, and you should afford the risk yourself.
F055A25-604 Payment:
ESCROW, TT, Western Union or Paypal is available for you.
ALI will continue to update more payment methods.
When you submit your order you can choose the payment method that suits you.
F055A25-604 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
F055A25-604 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
F055A25-604 Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
F055A25-604 FAQ:
Q: How can I trace my order of F055A25-604 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of F055A25-604 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of F055A25-604 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods F055A25-604 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
F055A25-604 Shipping and Package :
